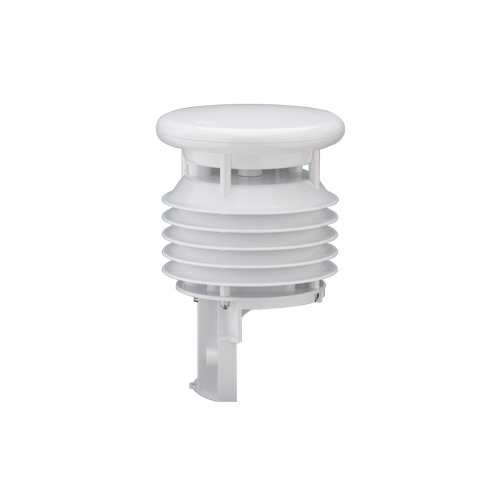

Lufft WS300 Multi-Parameter Weather Sensor

The Lufft WS300 Multi-Parameter Weather Sensor simultaneously measures air temperature, humidity & pressure in a compact platform with ventilated housing.

Features

  • Ventilated housing allows more accurate measurements in high radiation conditions
  • Easily mounts to 2" diameter pipe with integrated bracket mount & U-bolts
  • SDI-12 output for integration with NexSens and other data loggers

Details

Overview
The Lufft family of multi-parameter weather sensors offer a cost-effective, compact alternative for the acquisition of a variety of measurement parameters on land- and buoy-based weather stations. Depending on the model, each sensor will measure a different combination of weather parameters to meet a wide variety of applications.

Air Temperature & Humidity
Temperature is measured using a highly accurate NTC-resistor, while humidity is measured using a capacitive humidity sensor. Both sensors are located in a ventilated radiation shield to reduce the effects of solar radiation.

Pressure
Absolute air pressure is measured using a built-in MEMS sensor. The relative air pressure referenced to sea level is calculated using the barometric formula with the aid of the local altitude, which is user-configurable on the equipment.

Parts


ImagePart#Product DescriptionQuote
8372.U018372.U01WS300 multi-parameter weather sensor, air temperature, humidity & pressure, 10m cablequick_quote
