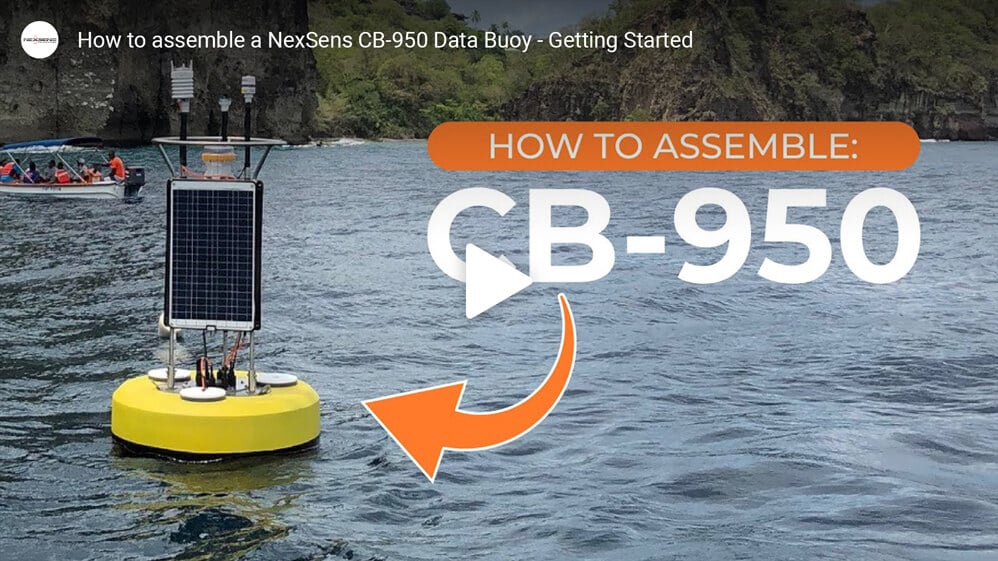

CB-950 Data Buoy CB-950 Data Buoy

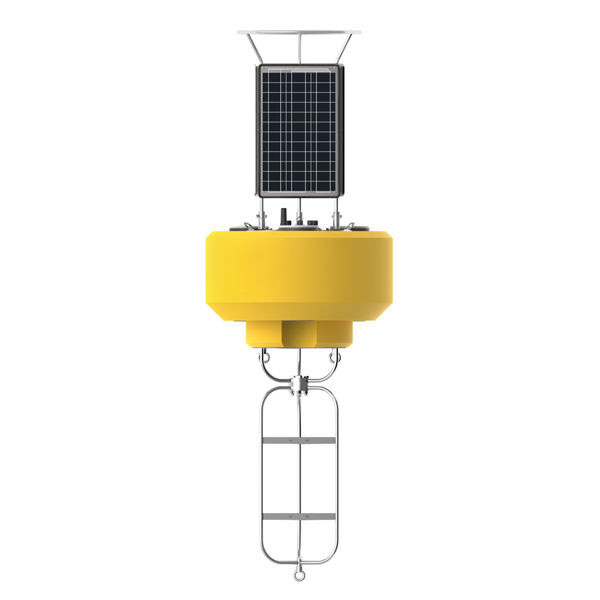

CB-950 Data Buoy

The CB-950 offers sufficient power and sensor payload for demanding instruments including video cameras, ADCPs and more.

Features

Powerful Powerful

Powerful

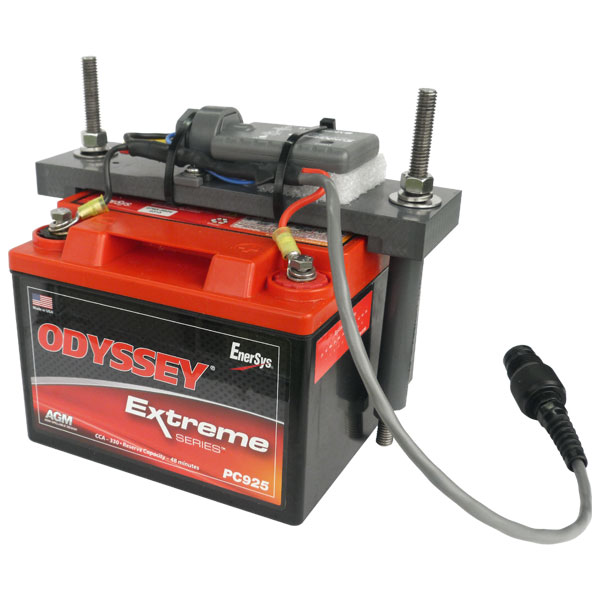

The platform integrates three 46-watt solar panels on the tower with space for up to three 28 A-Hr batteries in the data well.

Powerful

The platform integrates three 46-watt solar panels on the tower with space for up to three 28 A-Hr batteries in the data well.

Powerful Powerful
Tower Tower

Tower

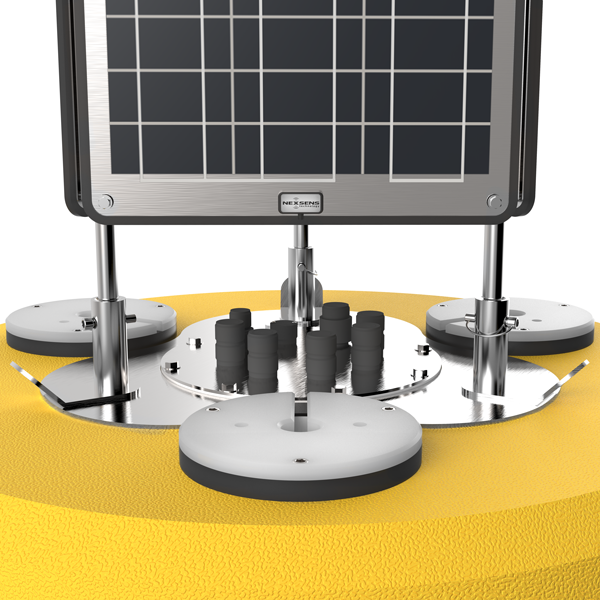

The stainless steel tower includes a top mounting plate for solar marine lights and radar reflectors. Mounts are also available for weather sensors, video cameras and other topside instruments.

Tower

The stainless steel tower includes a top mounting plate for solar marine lights and radar reflectors. Mounts are also available for weather sensors, video cameras and other topside instruments.

Tower Tower
Data Well Data Well

Data Well

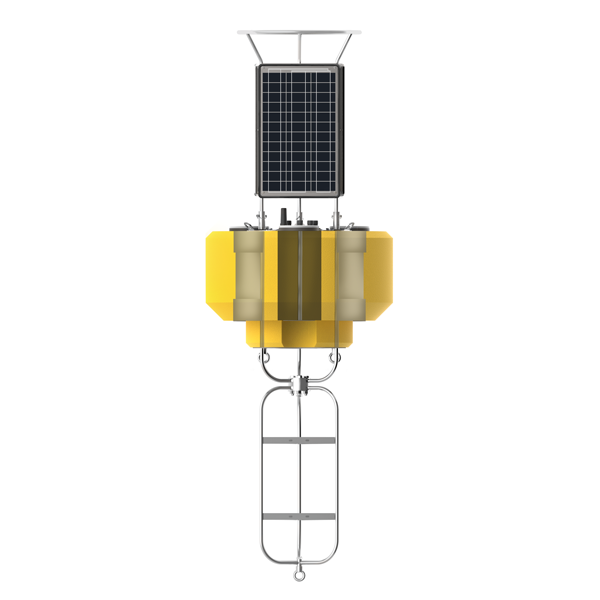

A 10-inch diameter by 26-inch tall data well provides a watertight housing for batteries, data loggers, sensors, and other hardware.

Data Well

A 10-inch diameter by 26-inch tall data well provides a watertight housing for batteries, data loggers, sensors, and other hardware.

Data Well Data Well
Connections Connections

Connections

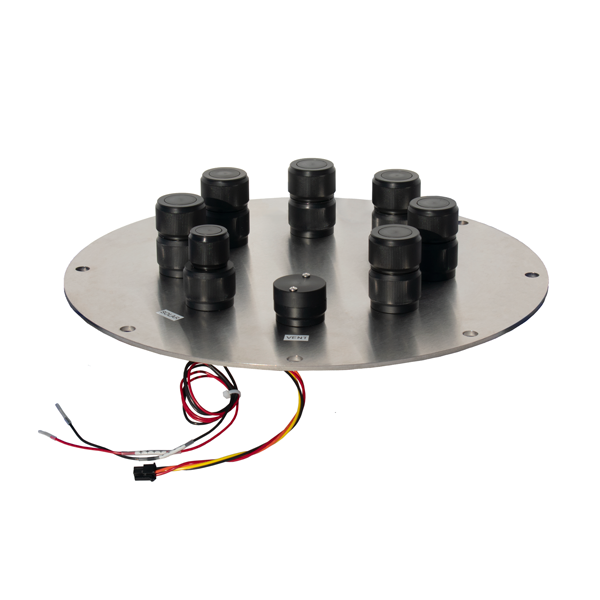

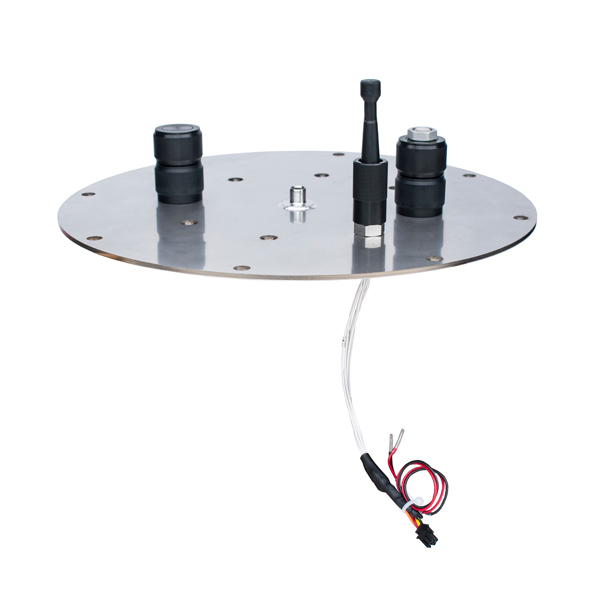

The data well lid provides pass-through connections for sensors, power, venting, and more. When integrated with the optional NexSens X2-CB data logger, the system is truly plug-and-play.

Connections

The data well lid provides pass-through connections for sensors, power, venting, and more. When integrated with the optional NexSens X2-CB data logger, the system is truly plug-and-play.

Connections Connections
Top-to-Bottom Ports Top-to-Bottom Ports

Top-to-Bottom Ports

Three 6-inch pass-through ports allow for sensors to be mounted underwater while securely routing the cable. Instrument deployment pipes and custom sensor mounts attach to 6-inch NPT bottom threads.

Top-to-Bottom Ports

Three 6-inch pass-through ports allow for sensors to be mounted underwater while securely routing the cable. Instrument deployment pipes and custom sensor mounts attach to 6-inch NPT bottom threads.

Top-to-Bottom Ports Top-to-Bottom Ports
Solar Beacon Solar Beacon

Solar Beacon

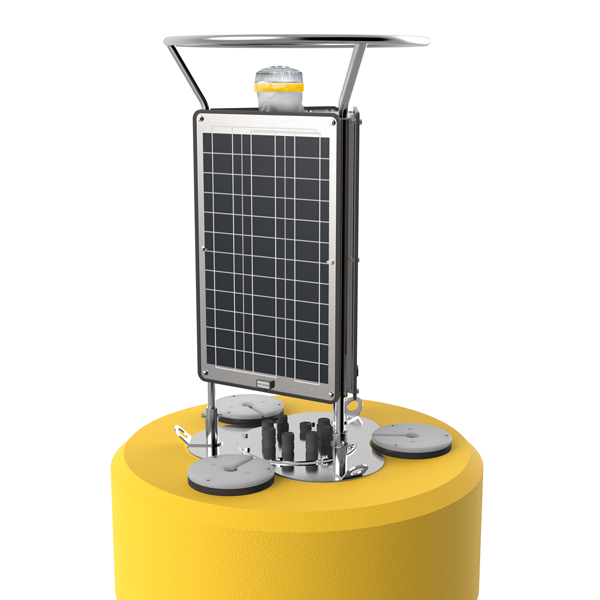

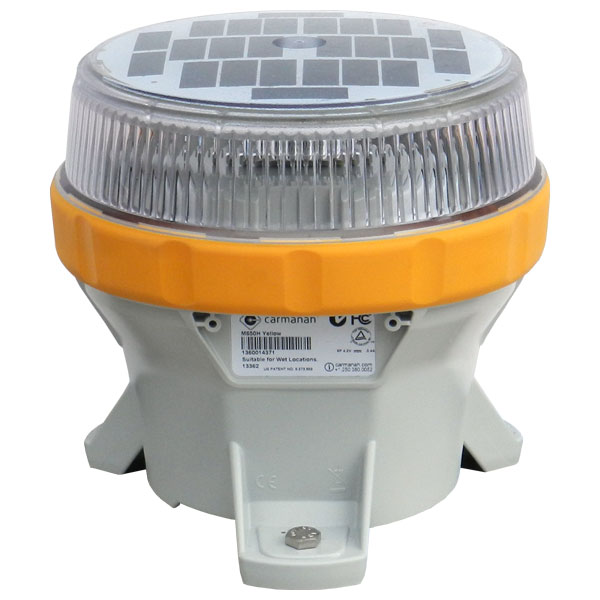

The optional solar marine light has a one to four nautical mile range and securely mounts to the buoy top plate for maximum visibility.

Solar Beacon

The optional solar marine light has a one to four nautical mile range and securely mounts to the buoy top plate for maximum visibility.

Solar Beacon Solar Beacon
Data Logging Data Logging

Data Logging

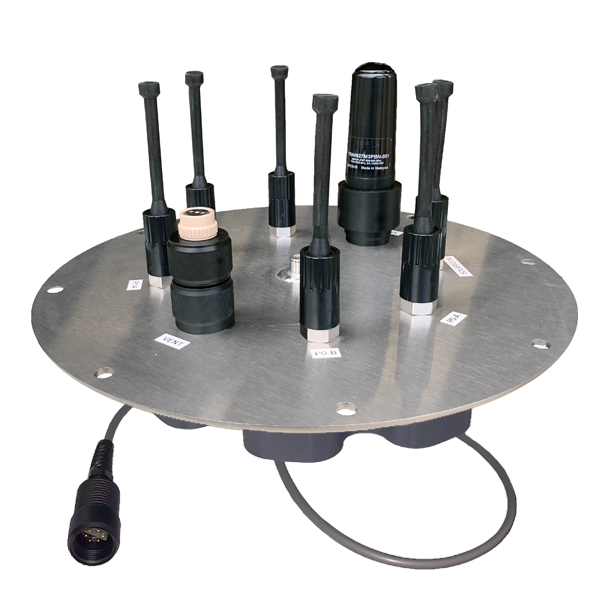

The X2-CB data logger replaces the standard pass-through data well lid for turnkey systems. Alternatively, 3rd party data loggers can be integrated by the user inside the data well.

Data Logging

The X2-CB data logger replaces the standard pass-through data well lid for turnkey systems. Alternatively, 3rd party data loggers can be integrated by the user inside the data well.

Data Logging Data Logging
Wireless Communications Wireless Communications

Wireless Communications

Communication options using the X2-CB data logger include Wi-Fi, radio-to-shore, cellular, and Iridium satellite.

Wireless Communications

Communication options using the X2-CB data logger include Wi-Fi, radio-to-shore, cellular, and Iridium satellite.

Wireless Communications Wireless Communications
Built to Last Built to Last

Built to Last

Constructed of cross-linked polyethylene foam with a heavy polymer skin and an indestructible stainless steel frame, the CB-950 is designed for years of service.

Built to Last

Constructed of cross-linked polyethylene foam with a heavy polymer skin and an indestructible stainless steel frame, the CB-950 is designed for years of service.

Built to Last Built to Last

Tech Specs

Hull Outer Diameter: 42.0” (106.7cm)
Hull Height: 26.0” (66.0cm)
Data Well Inner Diameter: 10.3” (26.2cm)
Data Well Height: 25.5" (64.8cm)
Pass-Through Hole Diameter: 6.0" (15.2cm)
Tower Height: 41.0” (104.1cm)
Solar Panels: 3x 46-watts
Weight: 285 lb (129kg)
View More
Gross Buoyancy: 950 lb (431kg)
Hull Material: Cross-linked polyethylene foam with polyurea coating & stainless steel deck
Hardware Material: 316 stainless steel
Mooring Attachments: 3x 3/4” eyenuts

Tech specs image Tech specs image

Q&A

How are water quality sondes mounted to moorings?
When measuring near the surface, water quality sondes can be housed inside a slotted deployment pipe that is threaded directly to the bottom instrument well on the buoy hull. This allows instrument access for periodic cleaning and calibration without having to pull the buoy out of the water. If the project requires measurements at depth or at multiple depths, NexSens offers instrument clamps and mooring cages for mooring lines, as well as bottom platforms when sondes need to be bottom referenced instead of surface referenced.
How do I connect sensor cables to the data buoy?

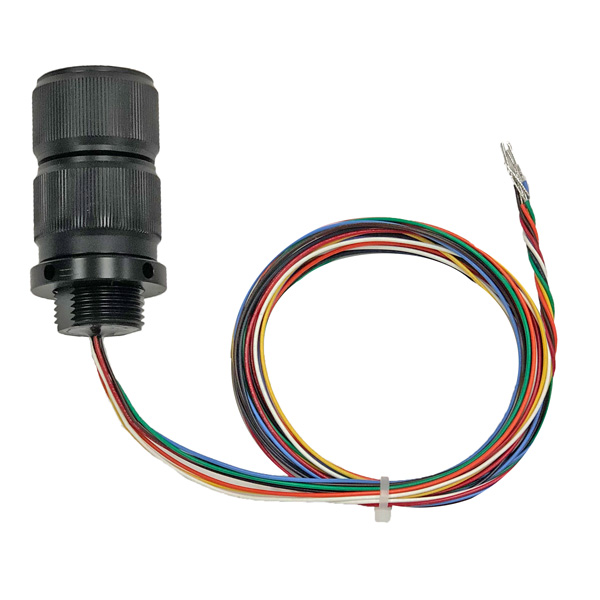

For customer integrations, cables can be run through one of six ports on the passthrough data well lid and secured with a supplied cable gland. The backside of the cable gland should be filled with epoxy or sealant to prevent water ingress. Alternatively, NexSens can supply a waterproof bulkhead connector with mating pigtail for splicing with user-supplied sensor cables. This allows for a quick disconnect of the cable at the lid. When using an X2-CB or X2-CBMC data logger on a NexSens integrated system, all supplied sensor cables are terminated with mating UW plug connectors or MCIL-8-FS connectors.
How do I mount a Doppler current profiler to the data buoy?

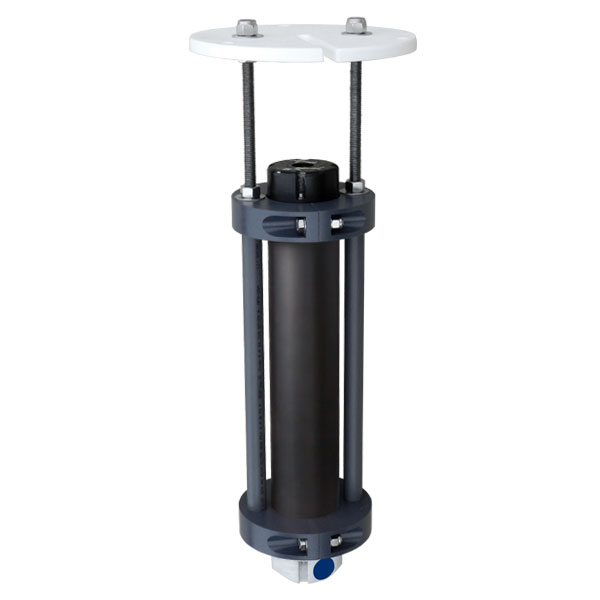

The mounting for an acoustic Doppler current profiler (ADCP) is instrument-dependent. NexSens offers several ADCP mounts for Nortek instruments, including the Aquadopp and Signature Series ADCPs. The mounts must be designed in such a way that the acoustic beams are unobstructed by the buoy and mooring. Custom mounts are also available based on project-specific needs. Contact info@nexsen.com for more details.
