The X2-CB includes all the features of the flagship X2 data logger in a lid-mounted package designed for integration on CB-Series data buoys.

quick_quote

Features

Smartphone Interface

Smartphone Interface

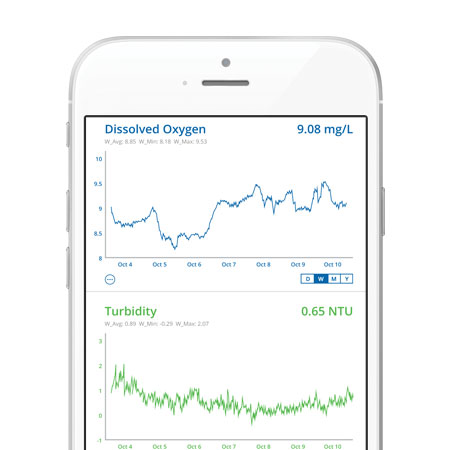

A smartphone, tablet, or laptop connects by Wi-Fi to access sensor data and view or change settings. No application-specific hardware or software is required. Works within an existing Wi-Fi network or as a direct link from the X2-CB to the device.

Underwater Connectors

Underwater Connectors

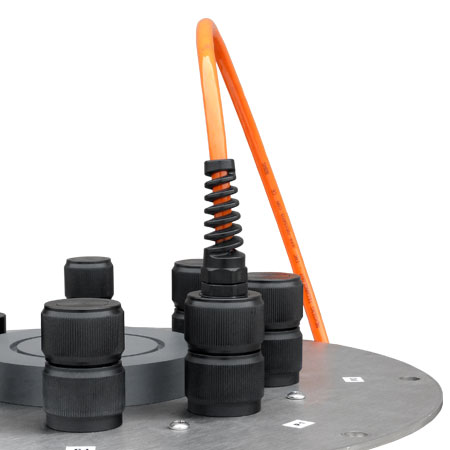

All connections are made with a simple waterproof thread-in connector. This removes the complications and errors associated with connecting individual wires.

Device-to-Web

Device-to-Web

When communicating within a Wi-Fi network or connecting via remote telemetry, measurement data streams directly to the WQData LIVE web datacenter.

Wireless Communication

Wireless Communication

Wi-Fi provides short range and local connectivity. Remote options include radio, cellular, and satellite communications.

Measurement Versatility

Measurement Versatility

SensorBUS technology incorporates industry standard SDI-12, RS-485 and RS232 interfaces in a single watertight cable. Smart sensors are available for most environmental measurements.

Buoy Mount Housing

Buoy Mount Housing

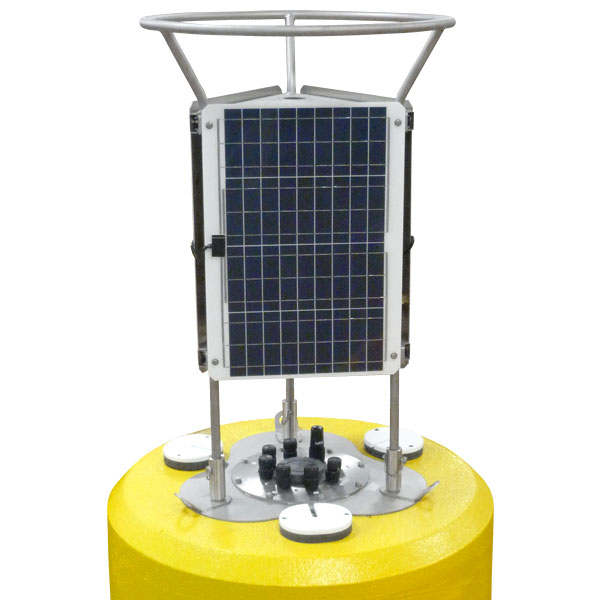

The X2-CB is sealed in a watertight PVC enclosure mounted directly to the bottom of a NexSens CB-Series buoy's 316 stainless steel data well top plate. With (5) integrated sensor ports, a vent, an antenna port, and a communication/power port, the X2-CB provides ultimate flexibility and ease of access to all connections.

Tech Specs

X2-CB Data Logger
Mount
: CB-Series buoy data well plate
Material: 316 stainless steel plate with PVC body
Weight: 10.5 lbs.
Dimensions: 13.5" Diameter, 4.4" Height (6" with cell/radio antenna; 8.125" with Iridium antenna)
Power Requirements
: 5-24 VDC +/-15% (Reverse polarity protected)
Current Draw (Typical @ 12VDC): Low power sleep: 200uA; Logger Active: 20mA; Wi-Fi Transmitting: 43mA; Cellular Transmitting: 200mA
Peak Current: Power supply must be able to sustain a 500mA 1-second peak current (@ 12V)
Operating Temperature: -20C to 70°C
Rating: IP67 (Standalone); IP65 (With telemetry)
Wi-Fi Communications
: 802.11b/g/n (Direct to X2-CB or Connect X2-CB to an existing network)
Wi-Fi Antenna: Internal to device
Wi-Fi Range: 250 ft. maximum1
User Interface: RS-485 direct to PC software*, Wi-Fi-Enabled embedded web, WQData LIVE Web Datacenter, buzzer indicator
Data Logging: 64MB internal flash*, 256MB microSD card (expandable up to 32GB)
Data Processing: Parameter level polynomial equation adjustment; Basic & Burst Averaging (min, max, standard deviation, and raw data available)
Real Time Clock (RTC): <30sec/month drift2; Auto-sync weekly3; Internal backup battery
Log Interval: User configurable from 1 second (10 minute default)4; Independent interval per sensor
Transmission Trigger: Time-based, parameter threshold*; Selective parameter upload option
Sensor Interfaces: SDI-12, RS-232 (3 Channels), RS485
Sensor Power: (3) 12V regulated switch channels with 1.5A capacity5,6
Built-in Sensors: Temperature (-40C to 85C, 0.002C resolution, ±2C accuracy); Pressure (300 mbar to 1100 mbar, 0.016 mbar resolution, ±2 mbar accuracy); Humidity (0% to 100%, 0.04% resolution, ±5% accuracy); Battery voltage
Sensor Ports: (5) 8-Pin for Sensor Interface (RS-232, RS-485, SDI-12, 5V, 12V, GND)7
Power Port: (1) 6-Pin for Power and Communication (12V Solar In, Power Switch, RS-485 Host, GND)

Telemetry Options
Cellular: CDMA 800,1900MHz, GSM 850, 900, 1800, 1900 MHz, UMTS/HSPA 850, 900, 1700, 1900, 2100 MHz
Radio*: 900MHz Mesh Network (902-928MHZ Frequency)
Iridium*: Short Burst Data (SBD) transceiver
Bridge*: Radio to Wi-Fi, Radio to Cellular, and Radio to Iridium
Antenna Port: N-Style RF

Sensor Support
Tier 1: Sensors automatically detected; No Setup
Tier 2: Sensors automatically detected: Require limited setup
Tier 3*: Custom user script creation available for interfacing to a wide array of sensors
Current Sensor List: Available Here

Notes
1Range varies based on many factors including obstructions, other wireless signals in the area, elevation change, and more. Actual distances may vary by location.
2Assumes 25ºC operating temperature
3Requires the X2 to be connected to the internet
4Minimum log interval dependent on sensor limitations and processing time
5Cumulative concurrent current limit of all three channels is 2A
6Logger power supply must be able to support current requirements of sensors
7P0A & P0B share a single RS-232 and power channel. P1A & P1B share a single RS-232 and power channel.
*Coming soon
