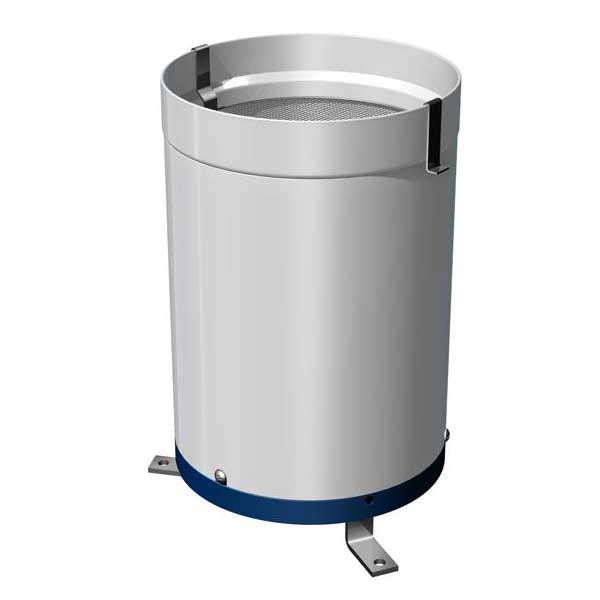

YSI H-3401 Tipping Bucket Rain Gauges

The YSI H-3401 is a precision tipping bucket rain gauge with optional SDI-12 output for use in hydro-meteorological applications.

Features

  • Two removable stainless steel funnel screens
  • Rustproof, powder painted aluminum enclosure and cast base
  • Internal leveling mechanism with ‘bulls-eye’ level

Details

The YSI H-3401 is a precision tipping bucket rain gauge with optional SDI-12 output for use in hydro-meteorological applications. The SDI-12 feature converts a standard tipping bucket rain gauge into a “smart” SDI-12 sensor with additional capabilities.

The H-3401 is easy to use and works with any data logger with a a switch closure or SDI-12 input. It scales the bucket tips into units (inches, meters, etc.) and provides built-in accumulation of daily and total rainfall. The SDI-12 unit also provides mathematical correction for bucket volume errors due to varying rainfall rate.

Parts


ImagePart#Product DescriptionQuote
H-3401-00-00H-3401-00-00H-3401 tipping bucket rain gauge with switch closure output, 0.01" per tiprequest_quote
H-3401-00-01H-3401-00-01H-3401 tipping bucket rain gauge with SDI-12 output, 0.01" per tiprequest_quote
H-3401-01-00H-3401-01-00H-3401 tipping bucket rain gauge with switch closure output, 0.1mm per tiprequest_quote
H-3401-01-01H-3401-01-01H-3401 tipping bucket rain gauge with SDI-12 output, 0.1mm per tiprequest_quote
H-3401-02-00H-3401-02-00H-3401 tipping bucket rain gauge with switch closure output, 0.2mm per tiprequest_quote
H-3401-02-01H-3401-02-01H-3401 tipping bucket rain gauge with SDI-12 output, 0.2mm per tiprequest_quote
