YOUNG Ultrasonic Anemometers

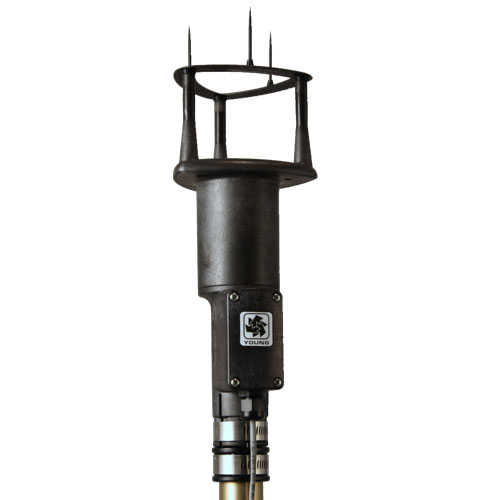

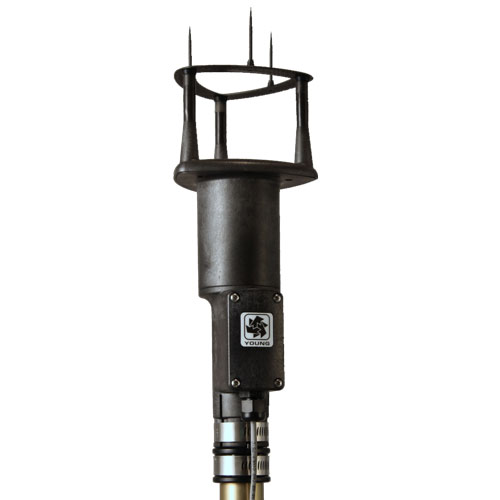

The YOUNG Model 86000 2D ultrasonic anemometer offers high performance and low power consumption in a compact size.
- Ideal for the most demanding wind sensing applications
- Calibrated & tested in wind tunnel to provide accurate wind measurement over a wide operating range
- Durable, corrosion-resistant construction with sensitive ultrasonic transducers
Introducing the YOUNG Model 86000 next generation 2D Ultrasonic Anemometer. The sensor offers high performance and low power consumption in a compact size. It is ideal for the most demanding wind sensing applications. The sensor features durable, corrosion-resistant construction with sensitive ultrasonic transducers secured in a streamlined molded frame. The 86000 is fully wind tunnel tested and calibrated to provide accurate wind measurement over a wide operating range. The standard sensor includes many useful output options. Analog voltage outputs are provided for wind speed and wind direction. 4-20 mA current signals are available for each channel and are well suited for long cable runs or for industrial settings where noise immunity is important. A variety of serial output formats are also available. These include ASCII text, RMYT (compatible with YOUNG displays), NMEA and SDI-12 formats. The sensor installs on readily available 1 inch (IPS) pipe. Wiring connections are made in a convenient weatherproof junction box; special mounting adapters, connectors and cables are not required.
