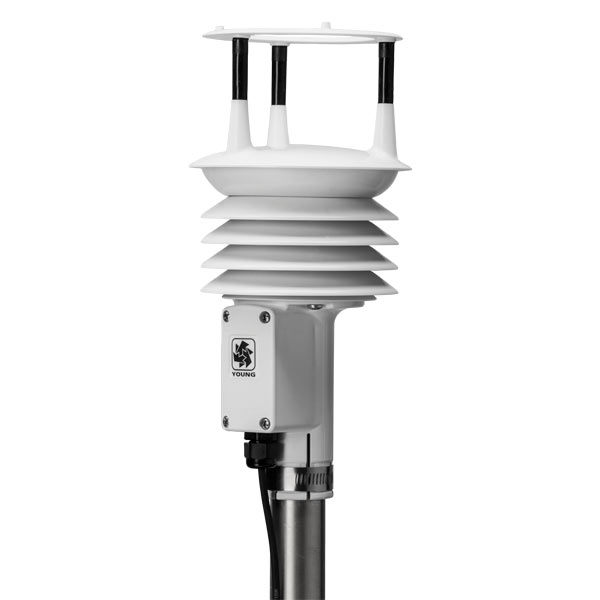

YOUNG ResponseONE Weather Transmitter

The YOUNG ResponseONE Weather Transmitter measures wind speed and direction, atmospheric pressure, humidity, and temperature in one compact instrument.

Features

  • Measures ultrasonic wind speed and direction, atmospheric pressure, humidity and temperature
  • Serial output formats include SDI-12, NMEA, and ASCII text
  • Wiring connections are made in a convenient weather-proof junction box

Details

Overview
The YOUNG Model 92000 ResponseONE Weather Transmitter measures four key meteorological variables with one compact instrument. It is ideal for many weather monitoring applications requiring accurate and reliable measurements. Ultrasonic wind speed and direction, atmospheric pressure, humidity and temperature sensors are carefully integrated into an enclosure optimized for durability, airflow and mitigation of solar radiation effects. Terminals are provided for connection of an optional tipping bucket rain gauge (sold separately).

Calibrated and Tested
Each sensor is fully wind tunnel tested and calibrated to provide accurate wind measurement over a wide operating range. Standard serial output formats include SDI-12, NMEA, and ASCII text. Output may be continuous or polled to conserve power. Standard RS-232 or RS-485 serial formats enable direct integration with YOUNG displays, marine NMEA systems, data loggers or other compatible serial devices. The sensor mounts on a standard 1-inch IPS pipe. A mounting orientation ring is included that engages with the base of the sensor to retain orientation when the sensor is removed for maintenance. Terminations are made in a junction box at the base of the sensor by small clamp-style connectors (no special connectors are required). The YOUNG Model 92500 ResponseONE Weather Transmitter includes an internal compass to provide orientation for wind direction, making it ideal for mobile or portable applications.

Variables

  • Ultrasonic wind speed and¬†direction
  • Atmospheric pressure
  • Humidity¬†
  • Temperature

Parts


ImagePart#Product DescriptionQuote
9200092000ResponseONE weather transmitterrequest_quote
9250092500ResponseONE weather transmitter with internal compassrequest_quote
