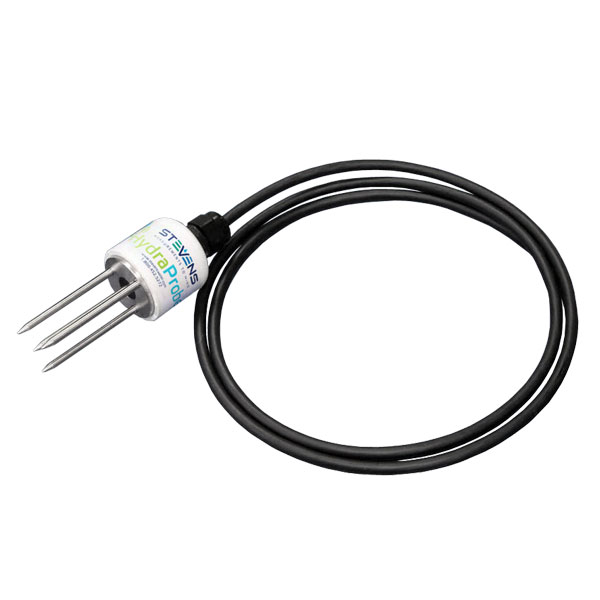

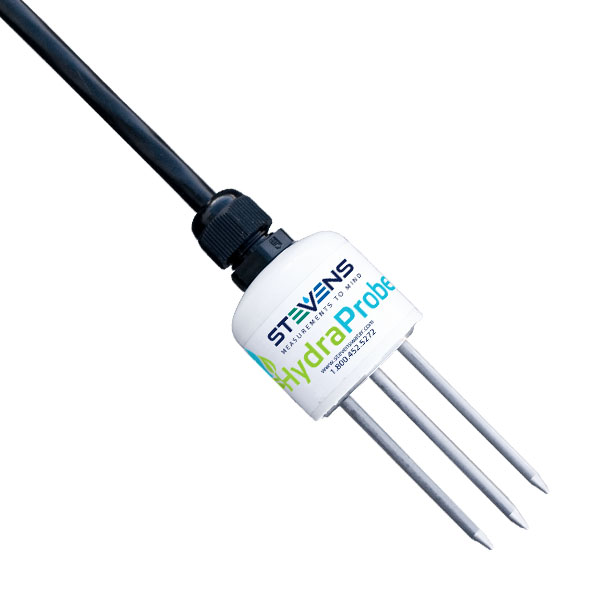

Stevens HydraProbe Soil Moisture Sensors

The Stevens HydraProbe soil moisture sensor provides simultaneous measurement of soil moisture, salinity, and temperature using a unique patented design.

Features

  • Instantaneous sensor response with no calibration requirements
  • Compact, rugged, zero-maintenance design for long-term deployments
  • Easy integration with NexSens data logging & telemetry products

Details

The Stevens HydraProbe soil moisture sensor is an in-situ soil probe that measures 21 different soil parameters simultaneously. The HydraProbe instantly calculates soil moisture, electrical conductivity, salinity, and temperature as well as supplying raw voltages and complex permittivity for research applications. A compact, rugged design with potted internal components makes the HydraProbe easy to deploy and leave in the soil for years with no maintenance.

The probe design is unique compared to other soil moisture probes because the electrical response of soils can be specified by two parameters - the dielectric constant and the conductivity. The dielectric constant is most indicative of water content, while the conductivity is strongly dependent on soil salinity. Unlike other capacitance type sensors, the HydraProbe measures both of these components simultaneously. The high frequency electrical measurements indicating the capacitive and conductive properties of soil are then directly related to the soil's moisture and salinity content, while a thermistor determines soil temperature.

The HydraProbe soil moisture sensor includes SDI-12 or RS-485 outputs for interfacing with external data loggers such as the NexSens X2. Sensor cables can be factory-connectorized with NexSens UW plug connectors for integration to an X2 data logger sensor port. Data retrieval options using the X2 include direct-connect, Wi-Fi, cellular, radio, and Iridium satellite telemetry.

Parts


ImagePart#Product DescriptionQuote
52012-0252012-02HydraProbe PROFESSIONAL soil moisture, temperature, & salinity sensor with SDI-12 interface, 25' cablequick_quote
52485-0252485-02HydraProbe PROFESSIONAL soil moisture, temperature, & salinity sensor with RS485 interface, 25' cablequick_quote
52012-0452012-04HydraProbe PROFESSIONAL soil moisture, temperature, & salinity sensor with SDI-12 interface, 50' cablequick_quote
52485-0452485-04HydraProbe PROFESSIONAL soil moisture, temperature, & salinity sensor with RS485 interface, 50' cablequick_quote
52012-0652012-06HydraProbe PROFESSIONAL soil moisture, temperature, & salinity sensor with SDI-12 interface, 100' cablequick_quote
52485-0652485-06HydraProbe PROFESSIONAL soil moisture, temperature, & salinity sensor with RS485 interface, 100' cablequick_quote
