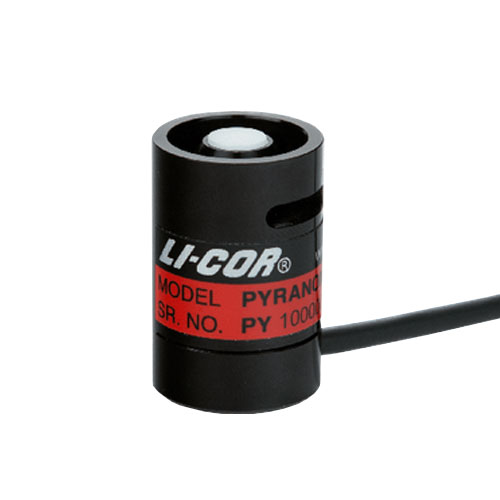

LI-COR LI-200R Solar Radiation Sensors

The LI‑200R Pyranometer measures total solar radiation. In outdoor sky conditions, the LI‑200R performs comparably to first-class thermopile pyranometers.

Features

  • Weather resistant and durable in long-term outdoor deployments
  • Cosine corrected to 82° incident angles for accurate measurements

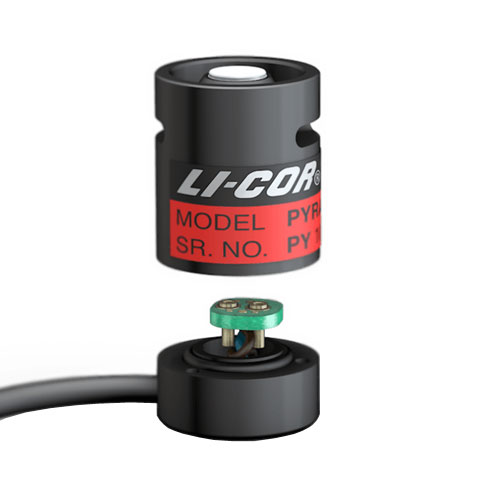

  • Detachable sensor simplifies installation and removal of sensor

Details

The LI‑200R measures total solar radiation with an unfiltered silicon photodiode. Although the LI‑200R does not measure the total solar spectrum, its measurements correspond closely to first-class thermopiles under outdoor conditions. The crown of the sensor rapidly sheds water, reducing pooling around the sensor. It also physically blocks light that is outside the hemisphere of sensitivity, providing precise cosine response. Ideal for agricultural, meteorological, solar energy, and environmental research, it is available with a variety of cable lengths and output signals for compatibility with most data loggers.

Parts


ImagePart#Product DescriptionQuote
LI-200R-BNC-2LI-200R-BNC-2Pyranometer with microamp output, 2m cable with BNC connectorquick_quote
LI-200R-BNC-5LI-200R-BNC-5Pyranometer with microamp output, 5m cable with BNC connectorquick_quote
LI-200R-BNC-15LI-200R-BNC-15Pyranometer with microamp output, 15m cable with BNC connectorquick_quote
LI-200R-BNC-50LI-200R-BNC-50Pyranometer with microamp output, 50m cable with BNC connectorquick_quote
LI-200R-BL-2LI-200R-BL-2Pyranometer with microamp output, 2m cable with bare leadsquick_quote
LI-200R-BL-5LI-200R-BL-5Pyranometer with microamp output, 5m cable with bare leadsquick_quote
LI-200R-BL-15LI-200R-BL-15Pyranometer with microamp output, 15m cable with bare leadsquick_quote
LI-200R-BL-50LI-200R-BL-50Pyranometer with microamp output, 50m cable with bare leadsquick_quote
LI-200R-SMV-2LI-200R-SMV-2Pyranometer with standardized mV output, 2m cable with bare leadsquick_quote
LI-200R-SMV-5LI-200R-SMV-5Pyranometer with standardized mV output, 5m cable with bare leadsquick_quote
LI-200R-SMV-15LI-200R-SMV-15Pyranometer with standardized mV output, 15m cable with bare leadsquick_quote
LI-200R-SMV-50LI-200R-SMV-50Pyranometer with standardized mV output, 50m cable with bare leadsquick_quote
