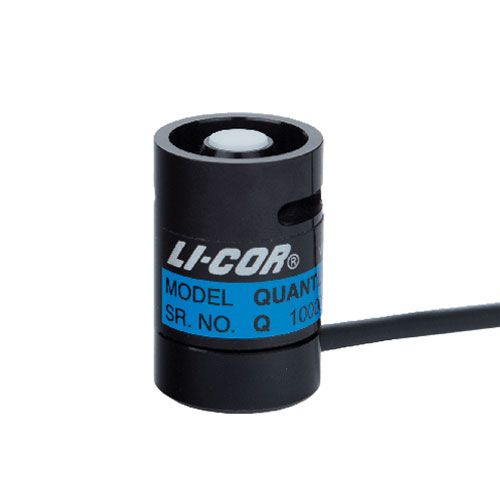

LI-COR LI-190R PAR Sensors

The LI-190R Quantum Sensor measures photosynthetically active radiation (PAR), which is energy that drives photosynthetic reactions in plants.

Features

  • Improved weather resistance and durability in long-term outdoor deployments
  • Uniform sensitivity to light that drives photosynthesis

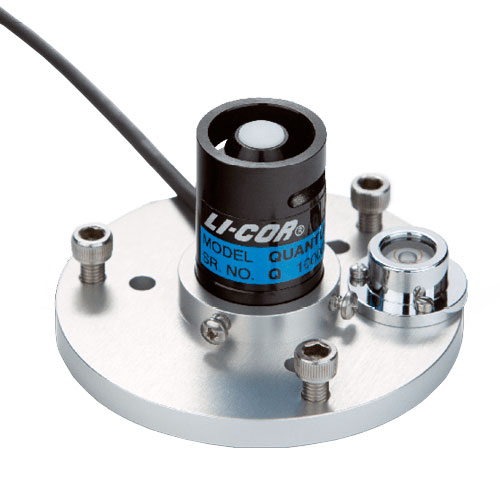

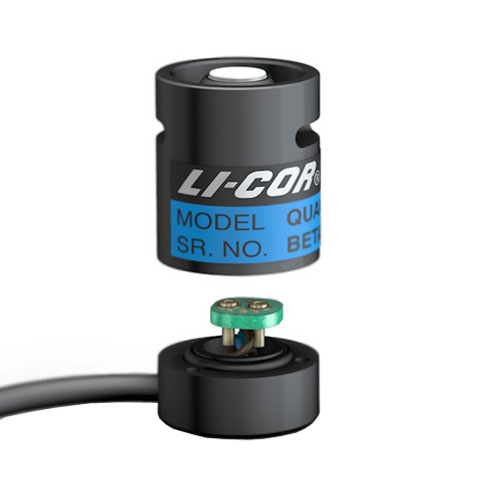

  • Removable sensor simplifies installation and removal of the sensor

Details

The LI‑190R uses a high-quality silicon photodiode and glass optical filters to create uniform sensitivity to light between 400 nm to 700 nm, which closely corresponds to light used by most plants. Precision optical filters block light with wavelengths beyond 700 nm, which is critical for measurements under vegetation where the ratio of infrared to visible light may be high. Excellent cosine response provides accuracy at low solar angles. This, in combination with high resolution at low light levels, makes the LI-190R useful for determining the light compensation point in plants.

Parts


ImagePart#Product DescriptionQuote
LI-190R-BNC-2LI-190R-BNC-2Quantum sensor with microamp output, 2m cable with BNC connectorquick_quote
LI-190R-BNC-5LI-190R-BNC-5Quantum sensor with microamp output, 5m cable with BNC connectorquick_quote
LI-190R-BNC-15LI-190R-BNC-15Quantum sensor with microamp output, 15m cable with BNC connectorquick_quote
LI-190R-BNC-50LI-190R-BNC-50Quantum sensor with microamp output, 50m cable with BNC connectorquick_quote
LI-190R-BL-2LI-190R-BL-2Quantum sensor with microamp output, 2m cable with bare leadsquick_quote
LI-190R-BL-5LI-190R-BL-5Quantum sensor with microamp output, 5m cable with bare leadsquick_quote
LI-190R-BL-15LI-190R-BL-15Quantum sensor with microamp output, 15m cable with bare leadsquick_quote
LI-190R-BL-50LI-190R-BL-50Quantum sensor with microamp output, 50m cable with bare leadsquick_quote
LI-190R-SMV-2LI-190R-SMV-2Quantum sensor with standardized mV output, 2m cable with bare leadsquick_quote
LI-190R-SMV-5LI-190R-SMV-5Quantum sensor with standardized mV output, 5m cable with bare leadsquick_quote
LI-190R-SMV-15LI-190R-SMV-15Quantum sensor with standardized mV output, 15m cable with bare leadsquick_quote
LI-190R-SMV-50LI-190R-SMV-50Quantum sensor with standardized mV output, 50m cable with bare leadsquick_quote
