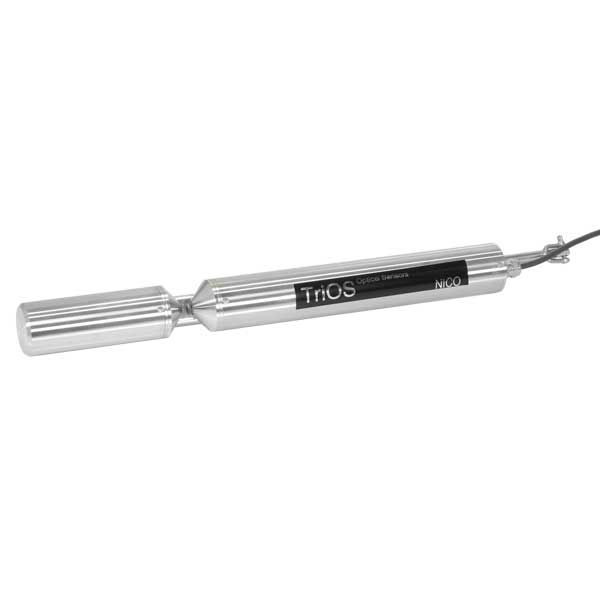

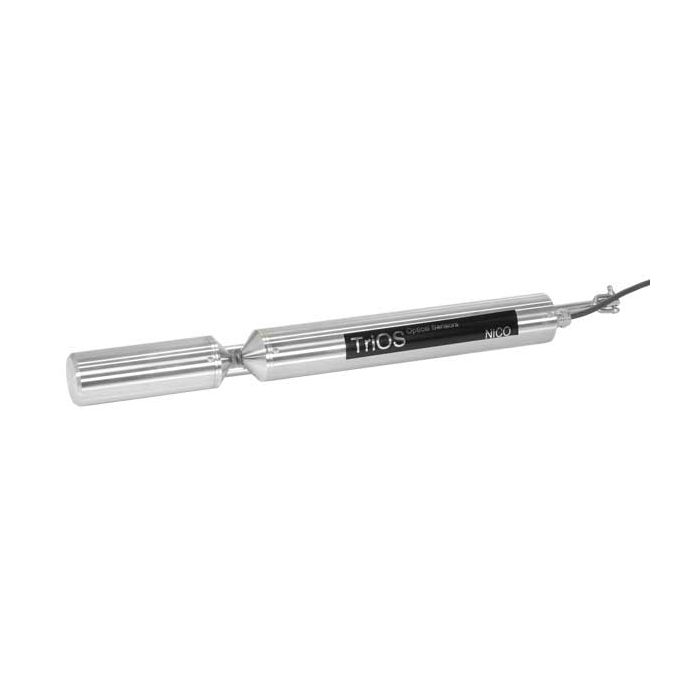

TriOS NICO UV Nitrate Sensor

The TriOS NICO is a low-cost UV photometer for online measurement of nitrate in lakes/rivers, drinking water, and wastewater applications.

Features

  • Internal compensation for temperature, turbidity, and organic substances
  • RS-485 Modbus RTU output for integration with data collection platforms
  • Optional W55 wiper cleans optics & reduces maintenance intervals

Details

The TriOS NICO is a low-cost UV photometer for online measurement of nitrate in lakes/rivers, drinking water, and wastewater applications. The four detection channels enable a precise optical determination of nitrate by absorption, taking into account turbidity and organic substances that pose a problem for many products currently on the market. An internal temperature correction additionally increases stability of the measured values.

The NICO is compatible with the G2 interface box, allowing fast and easy configuration of the sensors using a web browser. The sensor can be easily integrated into existing process control systems and external data loggers using the native RS-485 Modbus RTU output, and the optional W55 wiper reduces maintenance intervals by cleaning the optics before each measurement.

Parts


ImagePart#Product DescriptionQuote
15S40100015S401000NICO UV nitrate sensor with 10mm path length & stainless steel housing, 10m cablequick_quote
15S30100015S301000NICO UV nitrate sensor with 5mm path length & stainless steel housing, 10m cablequick_quote
15S20100015S201000NICO UV nitrate sensor with 2mm path length & stainless steel housing, 10m cablequick_quote
