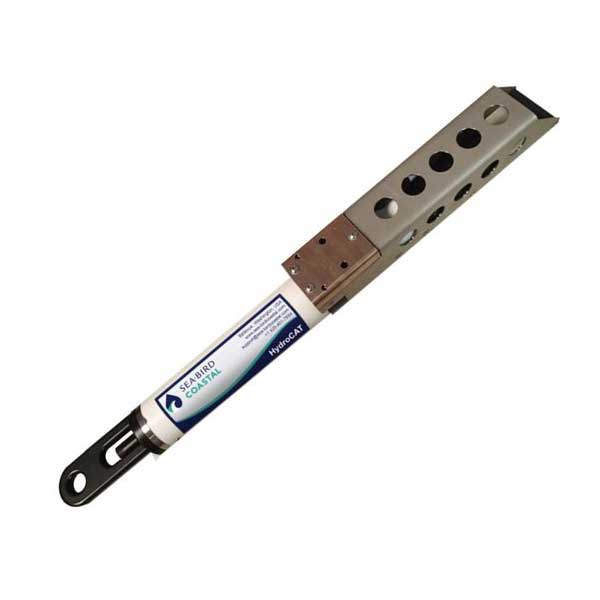

Sea-Bird Scientific HydroCAT CTD

The Sea-Bird Scientific HydroCAT CTD is ideally suited for extended deployments in remote, biologically rich environments.

Features

  • Anti-foulant device and pumped internal flow path for maximum bio-fouling protection
  • High initial accuracy with factory-cabibration and low drift rate
  • Common deployment duration of three plus months, reducing field costs

Details

The Sea-Bird Scientific HydroCAT CTD is ideally suited for extended deployments in remote, biologically rich environments. Field proven sensors measure and record conductivity, temperature, pressure and optical dissolved oxygen ensuring long term data stability. Depending on the application, the HydroCAT can collect high quality data for several months up to a year.

Excellent bio-fouling protection is provided by EPA-approved anti-foulant devices, an integral pump, and a unique internal flow path, which minimizes flow between samples and provides stable measurements throughout a deployment.

Conductivity and temperature sensors are based on field-proven SBE CTD products. The aged and pressure–protected thermistor has a long history of exceptional stability and accuracy. The oxygen sensor was designed by SBE to meet the demand for a low maintenance and high accuracy sensor for use in applications such as hypoxia monitoring. All HydroCAT sensors are built with careful choices of materials and geometry combined with superior electronics and calibration methodology to optimize field performance.

Parts


ImagePart#Product DescriptionQuote
HCSMP10220HCSMP10220HydroCAT conductivity & temperature recorderquick_quote
HCSMP11220HCSMP11220HydroCAT conductivity, temperature & depth recorder, 20m depth sensorquick_quote
HCSMP12220HCSMP12220HydroCAT conductivity, temperature & depth recorder, 100m depth sensorquick_quote
HCSMP13220HCSMP13220HydroCAT conductivity, temperature & depth recorder, 350m depth sensorquick_quote
HCSMP10222HCSMP10222HydroCAT conductivity, temperature & optical DO recorderquick_quote
HCSMP11222HCSMP11222HydroCAT conductivity, temperature, optical DO & depth recorder, 20m depth sensorquick_quote
HCSMP12222HCSMP12222HydroCAT conductivity, temperature, optical DO & depth recorder, 100m depth sensorquick_quote
HCSMP13222HCSMP13222HydroCAT conductivity, temperature, optical DO & depth recorder, 350m depth sensorquick_quote
