SeaView Systems SVS-603HR Wave Sensor

The SVS-603HR Wave Sensor is an augmented version of the highly accurate SVS-603 wave sensor that reports heading, wave height, wave period and wave direction via RS-232 or logs to its on-board data logger.

Features

  • Plug-and-play interface with full line of NexSens CB-Series data buoys
  • Sophisticated onboard electronics provide near-real-time wave statistics
  • On-board data logger capable of logging as much as twenty years of wave data

Document and Resource Library

Details

The SVS-603HR Wave Sensor is an augmented version of the highly accurate SVS-603 wave sensor that reports heading, wave height, wave period and wave direction via RS-232 or logs to its on-board data logger. The SVS-603HR represents a new generation in accuracy and completeness for wave sensing electronics whose features include:

  • Very low power consumption; fits the smallest power budget
  • Very small footprint; sold packaged or as bare PCB
  • Sensors account for 3-D motion, rotation and compass heading in all dimensions to cover nine degrees of freedom
  • Sophisticated onboard electronics provide near-real-time wave statistics
  • Variable sample set size (256, 512, 1024, 2048 or 4096)
  • On-board temperature compensation
  • On-board data logger capable of logging as much as twenty years of wave data, depending on desired outputs
  • Easy configuration to match your exact sensing rate and output requirements
  • Readily interfaced with transmitter using NMEA or other configurable data output
  • Sampling rates from 1 to 8Hz (user configurable)

The SVS-603HR can be used to replace existing sensors, to upgrade existing buoys, or to add wave sensing capabilities to even the most compact buoys. Among the wave data that are available as outputs from the sensor are:

  • Significant wave height in meters (Hs)
  • Wave period in seconds
  • Wave direction in degrees from north
  • North, east and up displacement time series
  • First-5 Fourier wave coefficients
  • Maximum wave height (Hmax)
  • Wave period at Hmax
  • Wave energy
  • Spectrum (raw or processed)
  • Heading in degrees
  • Custom outputs as required
Other outputs or data manipulations can be incorporated via firmware updates or through calculations on the available data stream.

SeaView Systems Logo

Parts


ImagePart#Product DescriptionQuote

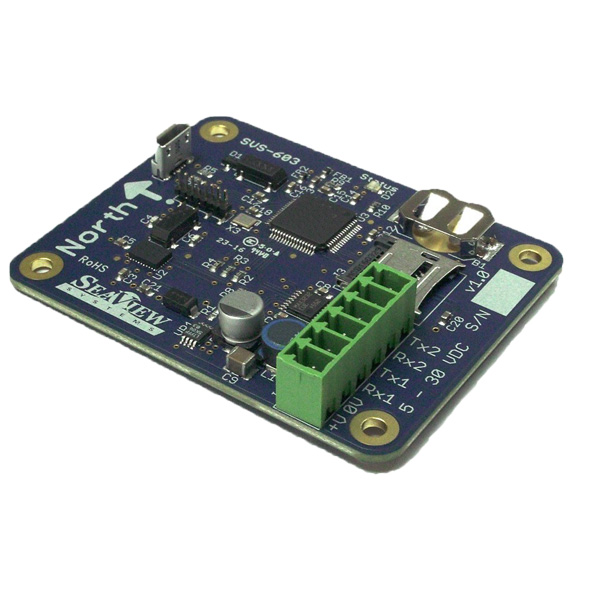

SVS-603HRSVS-603HRSVS-603HR inertial wave sensor for wave height, period & directionrequest_quote

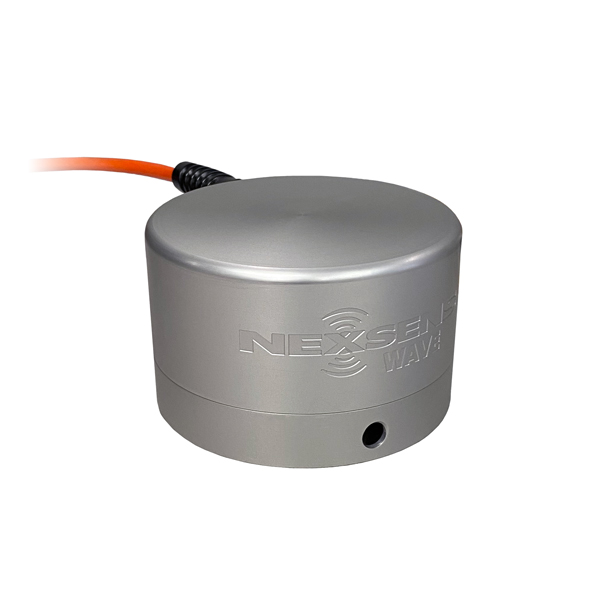

SVS-603HR-UWSVS-603HR-UWSVS-603HR inertial wave sensor for wave height, period & direction. Housed in waterproof enclosure with UW plug connector for X2-CB data loggersrequest_quote

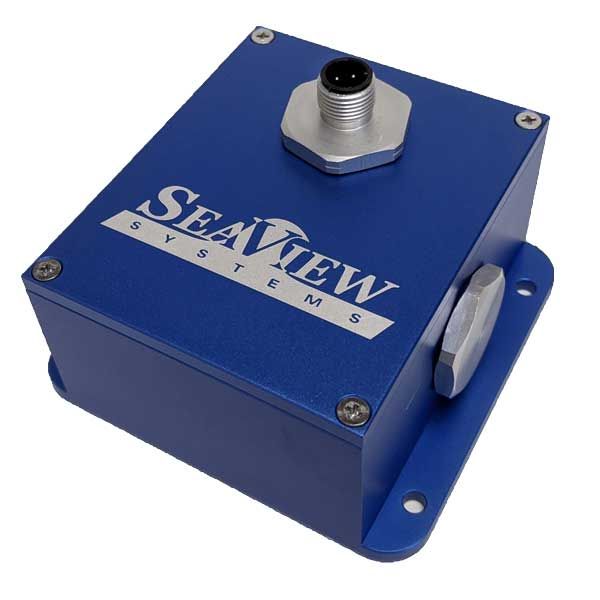

SVS-603HR-MCSVS-603HR-MCInertial wave sensor for wave height, period & direction. Housed in waterproof enclosure with MCIL-8-FS connector for X2-CBMC data loggersrequest_quote
