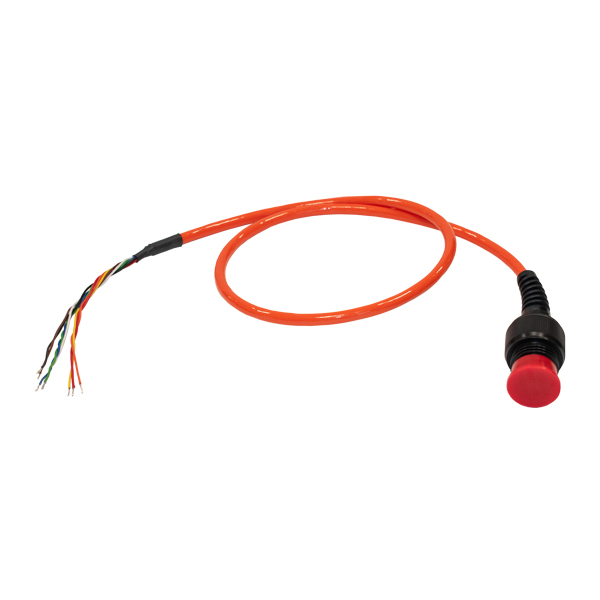

NexSens UW Plug to Flying Lead Cables

The UW plug to flying lead cable is used to wire external sensors to the X2/V2 Series data loggers.

Features

  • Cables are constructed of (8) 22 AWG wires
  • Heavy-duty, UV stabilized polyurethane jacket
  • Includes plug connector with flexible strain relief

Details

The UW-FL cables incorporate sensorBUS connectivity for connection to include three industry standard digital interfaces (1-wire temp string, RS-485 multi-drop and SDI-12) along with both 12 and 5 VDC power. Cables are constructed of (8) 22 AWG wires, including a shielded twisted pair for RS-485 signals, an overall shield, and a heavy-duty, UV stabilized polyurethane jacket. The connectorized cable end includes a flexible strain-relief and a plug fitting. Double o-rings (both gland and face seals) ensure a reliable and watertight connection.

Parts


ImagePart#Product DescriptionQuote
UW-FL1UW-FL1UW plug to flying lead cable, 1mquick_quote
UW-FL3UW-FL3UW plug to flying lead cable, 3mquick_quote
UW-FL10UW-FL10UW plug to flying lead cable, 10mquick_quote
UW-FL20UW-FL20UW plug to flying lead cable, 20mquick_quote
UW-FL30UW-FL30UW plug to flying lead cable, 30mquick_quote
