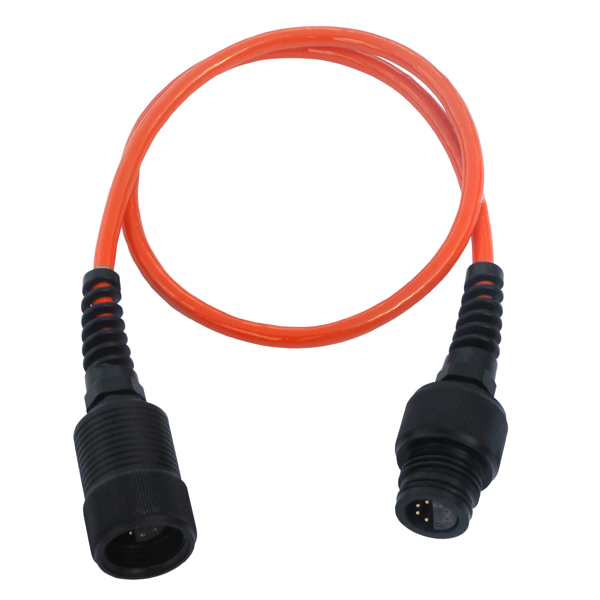

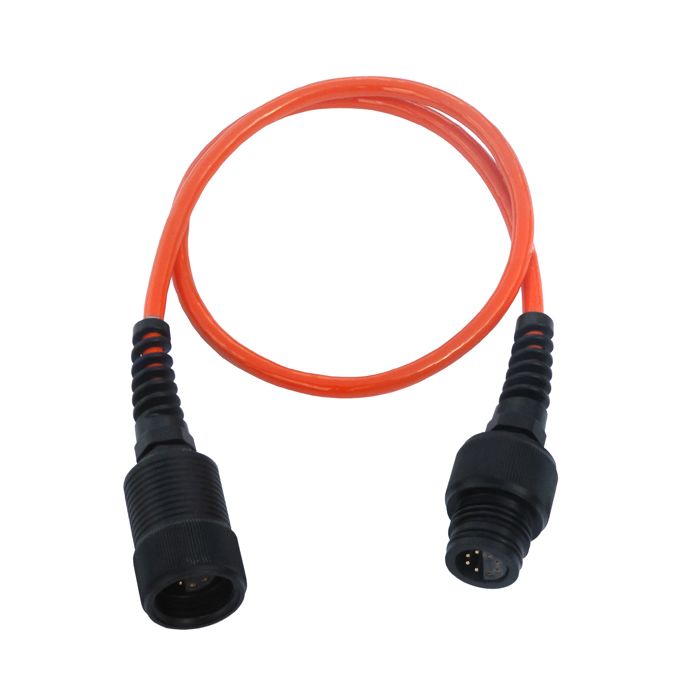

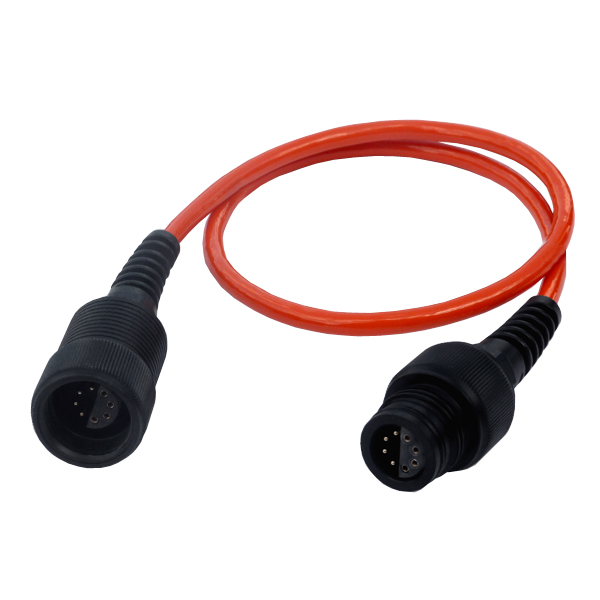

NexSens UW Extension Cables

Designed for harsh environments in fresh, brackish, or seawater, these UW extension cables offer flexibility in building temperature strings and environmental monitoring networks.

Features

  • Build multi-point temperature strings by connecting UW cables to T-Node FR sensors
  • Includes SDI-12 and RS-485 signals for connecting other smart sensors
  • Submersible to 200 feet

Details

All UW series cables incorporate sensorBUS connectivity for connection to include three industry standard digital interfaces (RS-485 and SDI-12) along with both 12 and 5VDC power. Cables are constructed of (8) 22 AWG wires, including a shielded twisted pair for RS-485 signals, an overall shield and a heavy wall, UV stabilized polyurethane jacket. Connectorized cable ends include a flexible strain-relief and either a plug or receptacle fitting. Double o-rings (both gland and face seals) ensure a reliable and water-tight connection. Mated connectors are rated at 200 feet of submersion. Cables are interchangeable and can be connected in series to extend lengths as needed. A complete set of accessories are available for termination, junction and signal splitting.

Parts


ImagePart#Product DescriptionQuote
UW-0.5UW-0.5UW plug to receptacle extension cable, 0.5mquick_quote
UW-1UW-1UW plug to receptacle extension cable, 1mquick_quote
UW-1.5UW-1.5UW plug to receptacle extension cable, 1.5mquick_quote
UW-2UW-2UW plug to receptacle extension cable, 2mquick_quote
UW-3UW-3UW plug to receptacle extension cable, 3mquick_quote
UW-4UW-4UW plug to receptacle extension cable, 4mquick_quote
UW-5UW-5UW plug to receptacle extension cable, 5mquick_quote
UW-6UW-6UW plug to receptacle extension cable, 6mquick_quote
UW-8UW-8UW plug to receptacle extension cable, 8mquick_quote
UW-10UW-10UW plug to receptacle extension cable, 10mquick_quote
UW-15UW-15UW plug to receptacle extension cable, 15mquick_quote
UW-20UW-20UW plug to receptacle extension cable, 20mquick_quote
UW-25UW-25UW plug to receptacle extension cable, 25mquick_quote
UW-30UW-30UW plug to receptacle extension cable, 30mquick_quote
UW-40UW-40UW plug to receptacle extension cable, 40mquick_quote
UW-50UW-50UW plug to receptacle extension cable, 50mquick_quote
