UW-EXO Wiring Information

If an EXO sonde is unresponsive or giving intermittent readings, follow this article to verify cable signal continuity and confirm resistance is within specifications. Below is the pinout for the NexSens UW-EXO cable. All signals should have less than 1 ohm resistance.

How do I check the continuity of a sensor cable?

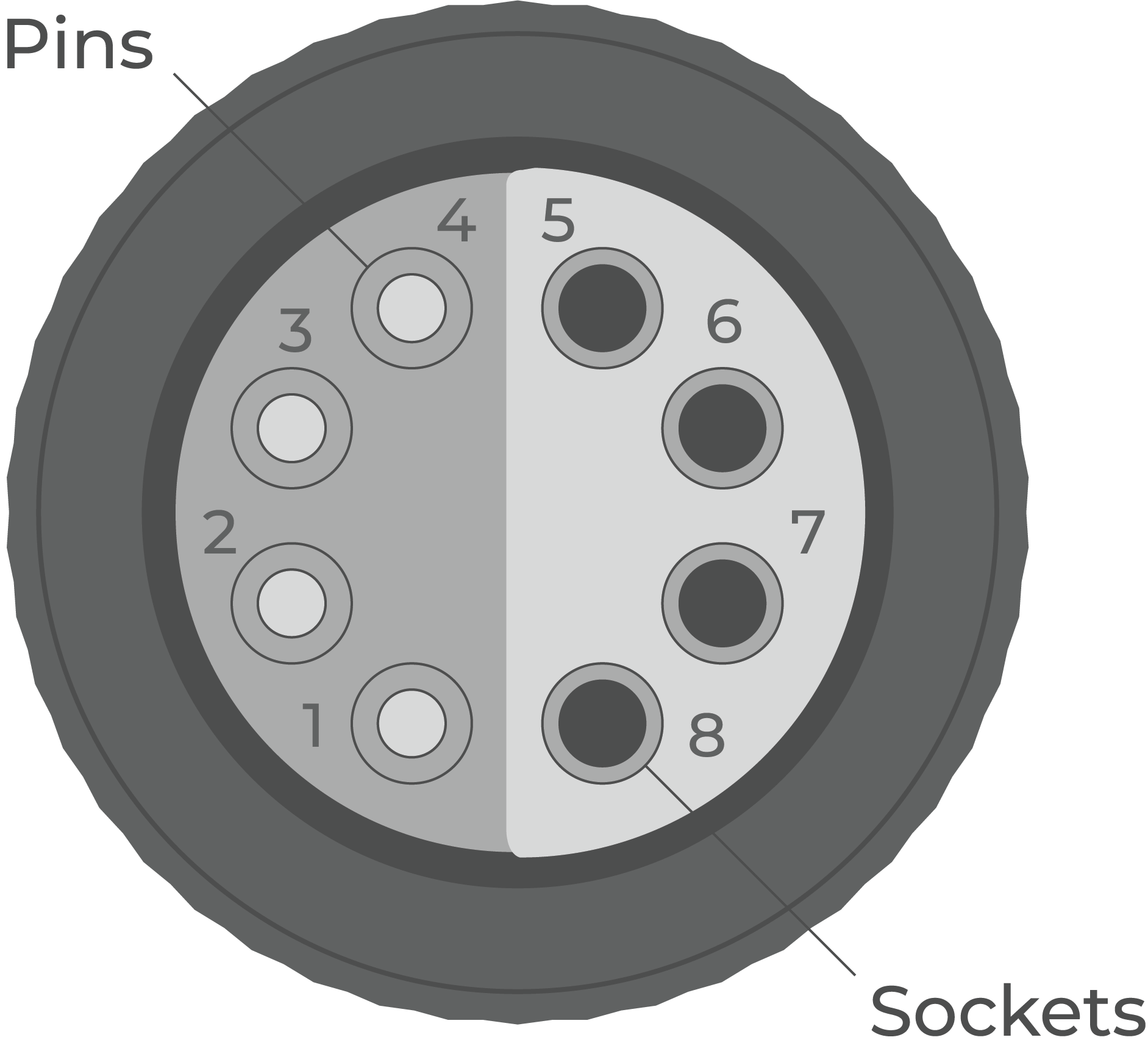

NexSens MCIL-6-FS Socket Number	NexSens UW8 Pin	Signal
2 & 4	2	Ground
3	5	Power
1	6	SDI-12
