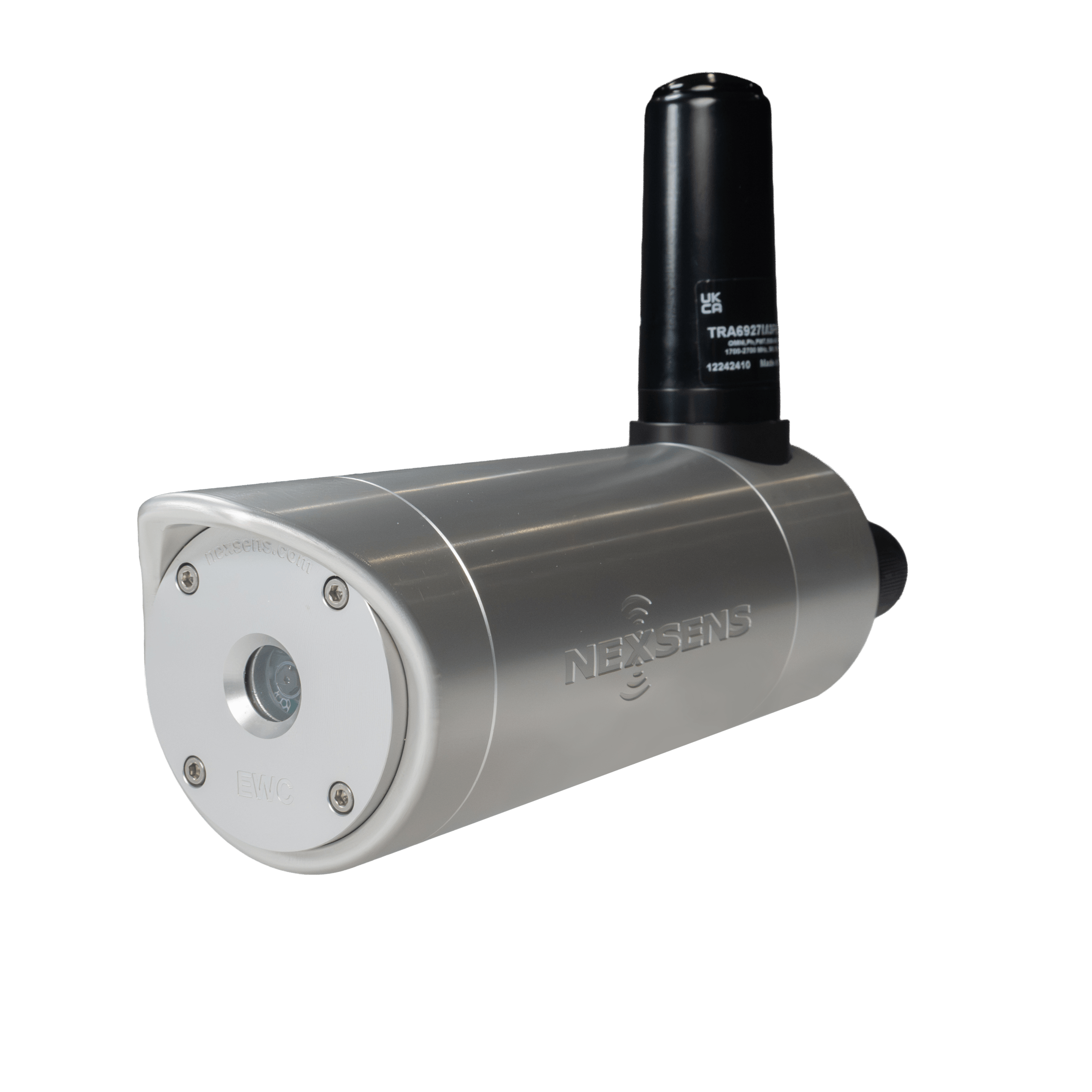

EWC Environmental Webcam
Features
Plug-and-Play Capability
The camera simply plugs into the sensor port of an X3 Data Logger for deployment on data buoys, tide gauges, weather stations, and more.
Plug-and-Play Capability
The camera simply plugs into the sensor port of an X3 Data Logger for deployment on data buoys, tide gauges, weather stations, and more.
Real-Time Field Images

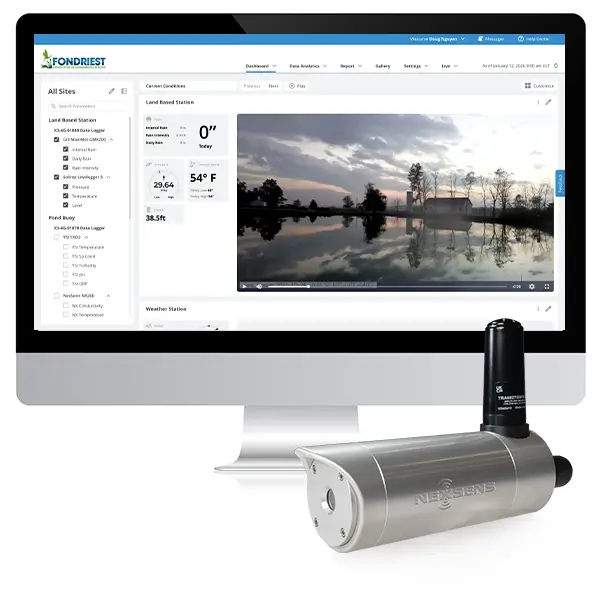

An internal USB flash drive stores high-resolution photo and video files, while lower-resolution files are transmitted with measurement parameters to WQData LIVE.
Real-Time Field Images
An internal USB flash drive stores high-resolution photo and video files, while lower-resolution files are transmitted with measurement parameters to WQData LIVE.
Low Power Consumption
Low power consumption means that the EWC can be added to existing systems without needing to change the power supply.
Low Power Consumption
Low power consumption means that the EWC can be added to existing systems without needing to change the power supply.
Durable Construction
Housed in a marine anodized aluminum enclosure with a scratch-resistant lens and waterproof connections, the EWC is ideal for deployment in harsh conditions without the fear of moisture ingress.
Durable Construction
Housed in a marine anodized aluminum enclosure with a scratch-resistant lens and waterproof connections, the EWC is ideal for deployment in harsh conditions without the fear of moisture ingress.
Documents
Purchase in the USA
Visit our US distributor, Fondriest Environmental, to purchase online.
Purchase Internationally
Click the button below to find a local distributor.
Contact a NexSens Applications Scientist
Need help designing an Environmental IoT system? NexSens applications scientists will help you design the perfect monitoring system to meet field conditions and monitoring needs.
Tech Specs
Dimensions: 2.95” OD, 9.812” Length, 6.625” Height (includes antenna)
Power Requirements: 5 to 16VDC, 2A
Current Draw: >1mA sleep, 400mA active, 1.75A peak powerup
Operating Temperature: -20-60 °C
Rating: IP68
Interface: Wi-fi access point (for setup); RS-485
Protocol: Modbus RTU over RS-485
Connector: UW6
Storage: USB flash memory, 64GB standard
Sensor Interface: Modbus RTU over RS-485
Lens: Fix focus 1m to infinity
Focal Length: 3.04mm
F-Stop: F2.0
Horizontal FOV: 62.2 degrees
Vertical FOV: 48.8 degrees
Still Resolution: 8 Megapixels
Video: 1080p, 1640 x 1232, 640 x 480
Video Frame Rate: Default 30 (adjustable)
Image Sensor: Sony IMX219
Sensor Resolution: 3280 x 2464
Sensor Image Area: 3.68 x 2.76mm
Optical Size: 1/4”
Image Format: JPG
Video Format: H.264
Wake Time: 30 second from sleep or off
Still Capture Time: 32 seconds from sleep or off, 0.5 to 6 seconds from wake up
Video Length: 5 to 30 seconds
