NexSens MCIL-8 Cable Assemblies Wiring Guide

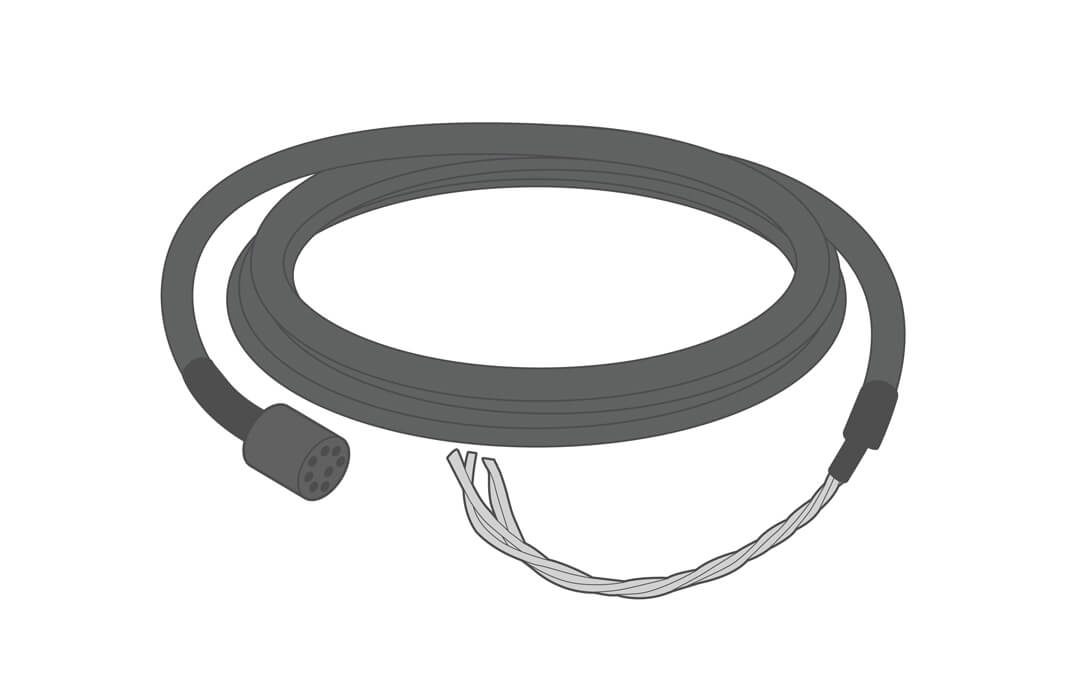

The NexSens MCIL-8 Cable Assemblies come as a female or male wet mateable cable with a locking sleeve available for interfacing with a variety of water quality instruments.
 |
 |

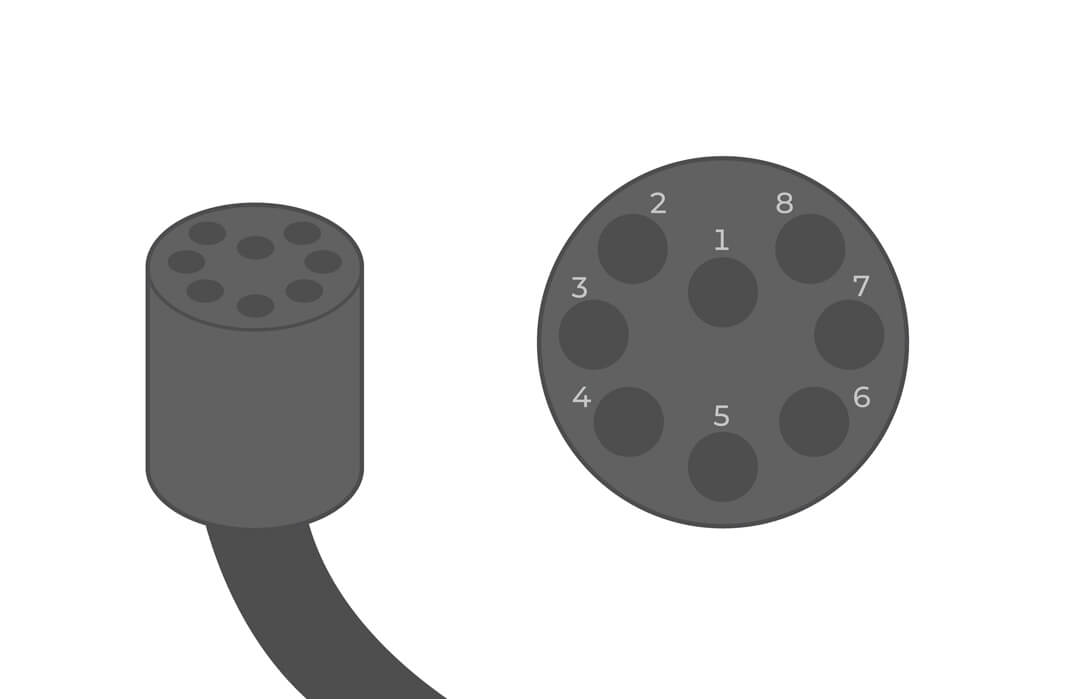

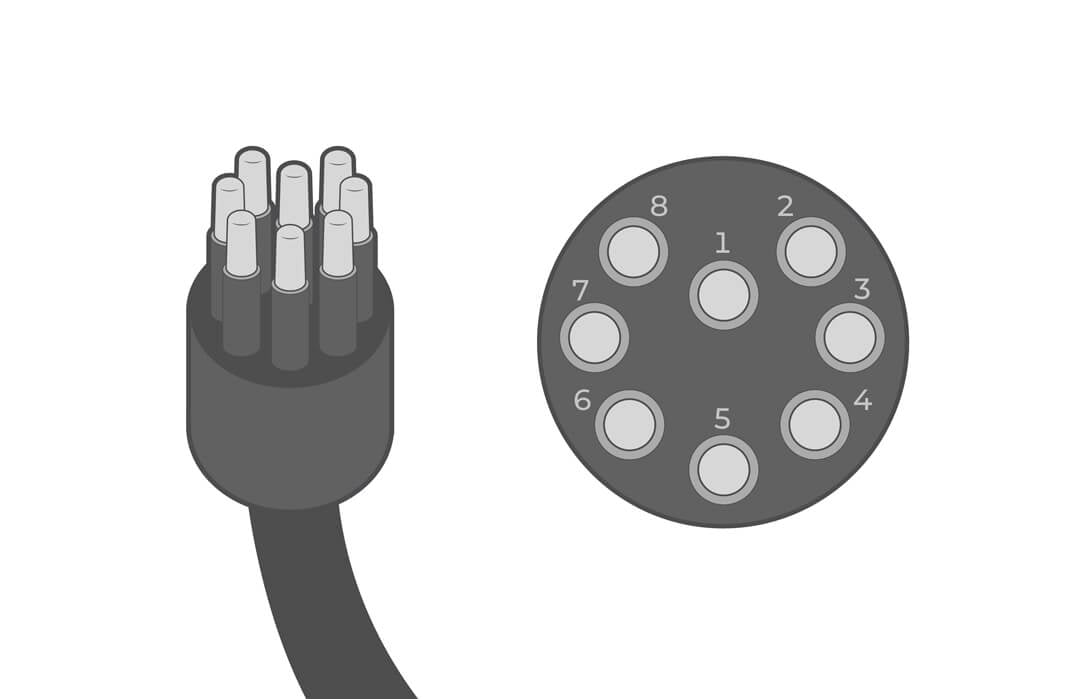

| NexSens MCIL-8 Female Cable Assemblies (MCIL-8-FS-X) | NexSens MCIL-8 Male Cable Assemblies (MCIL-8-M-X) |
Wiring
 |
 |
| NexSens MCIL-8 Female Cable Assemblies (MCIL-8-FS-X) | NexSens MCIL-8 Male Cable Assemblies (MCIL-8-M-X) |
| UW Plug Pin | Wire Color |
| 1 | Orange |
| 2 | Black |
| 3 | Red |
| 4 | Brown |
| 5 | Yellow |
| 6 | White |
| 7 | Blue |
| 8 | Green |
