NexSens MCIL-6 Cable Assemblies Wiring Guide

The NexSens MCIL-6 Cable Assemblies come as a female or male wet mateable cable with a locking sleeve available for interfacing with a variety of water quality instruments.

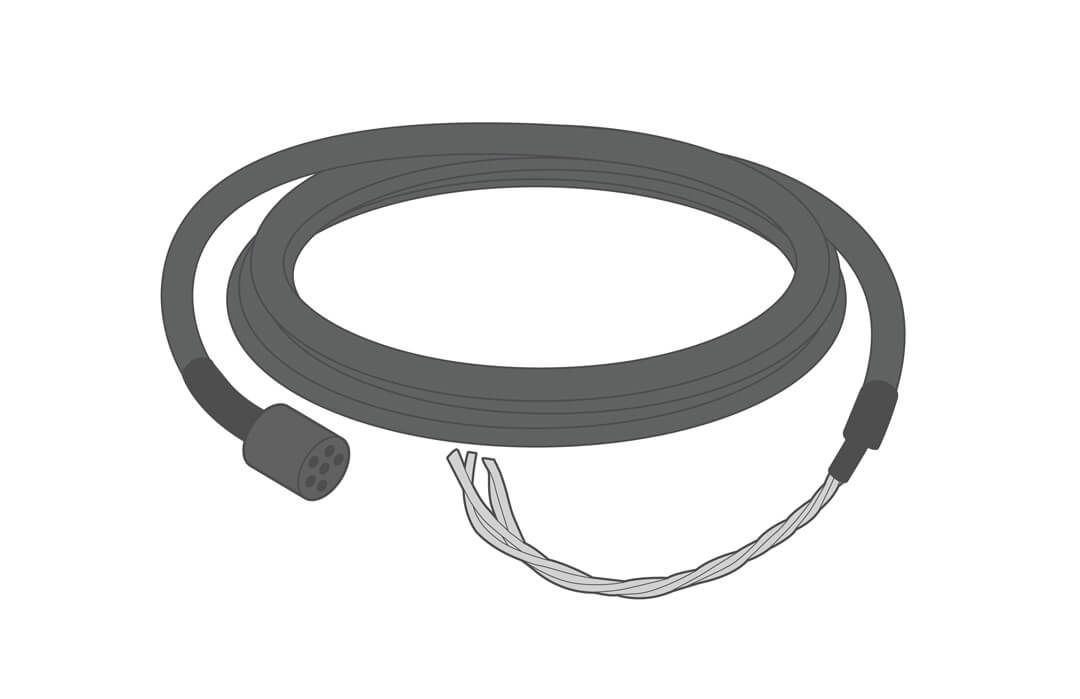

NexSens MCIL-6 Female Cable Assemblies (MCIL-6-FS-X)	NexSens MCIL-8 Male Cable Assemblies (MCIL-6-M-X)



Wiring

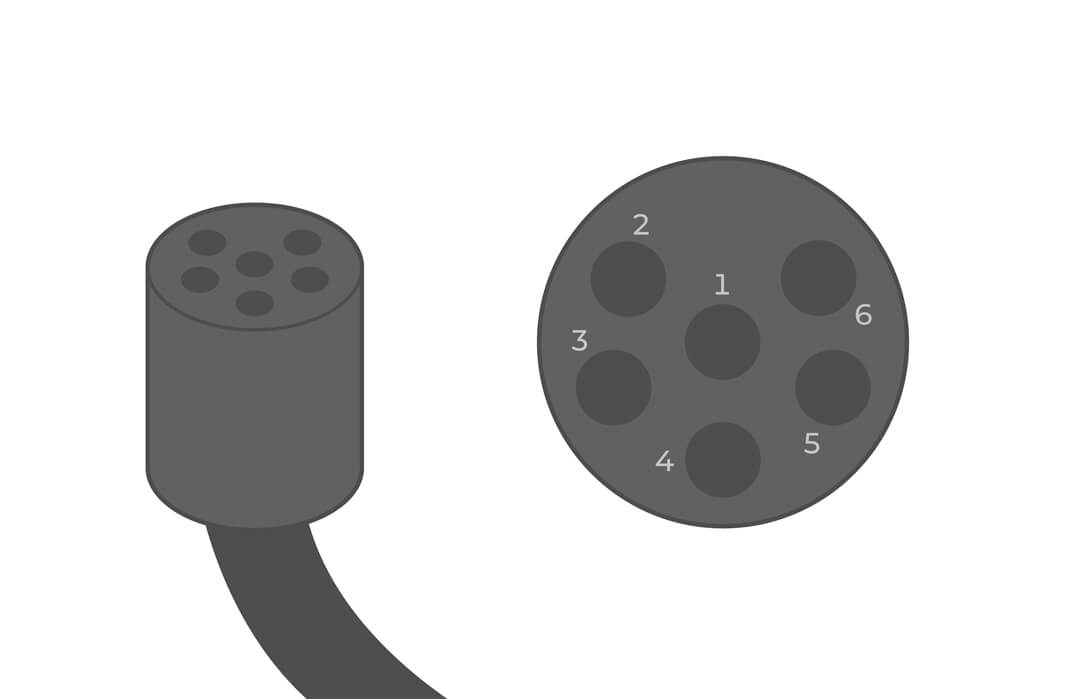

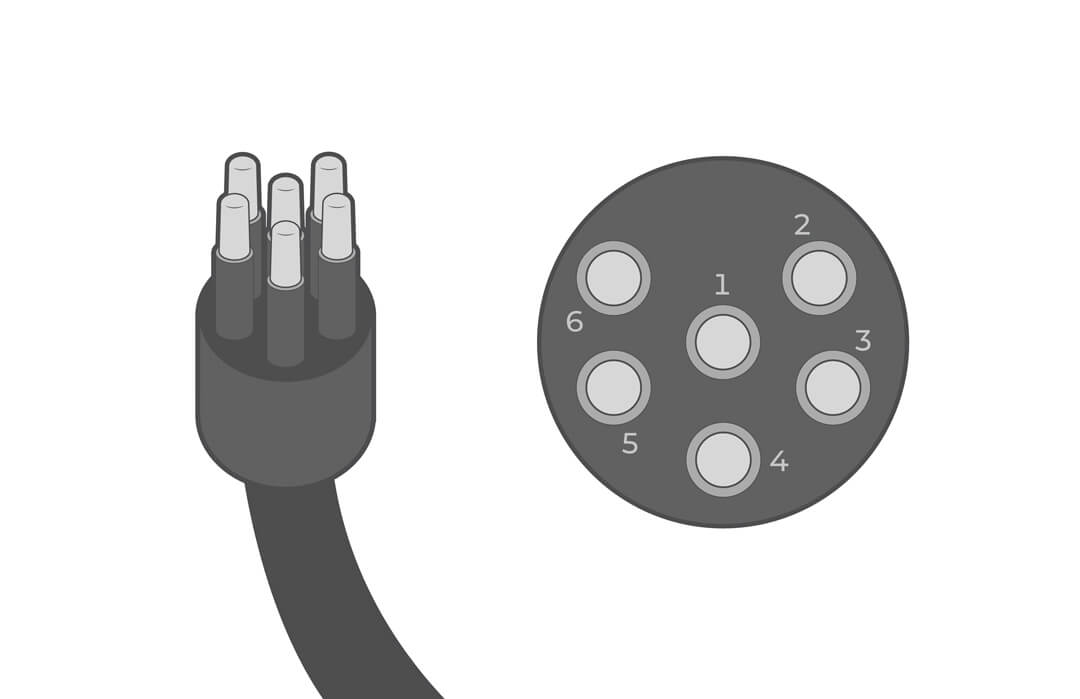

NexSens MCIL-6 Female Cable Assemblies (MCIL-6-FS-X)	NexSens MCIL-6 Male Cable Assemblies (MCIL-6-M-X)



UW Plug Pin	Wire Color
1	Orange
2	Black
3	Red
4	Brown
5	Yellow
6	White
