NexSens UW-6 Receptacle to Flying Lead Cable Wiring Guide

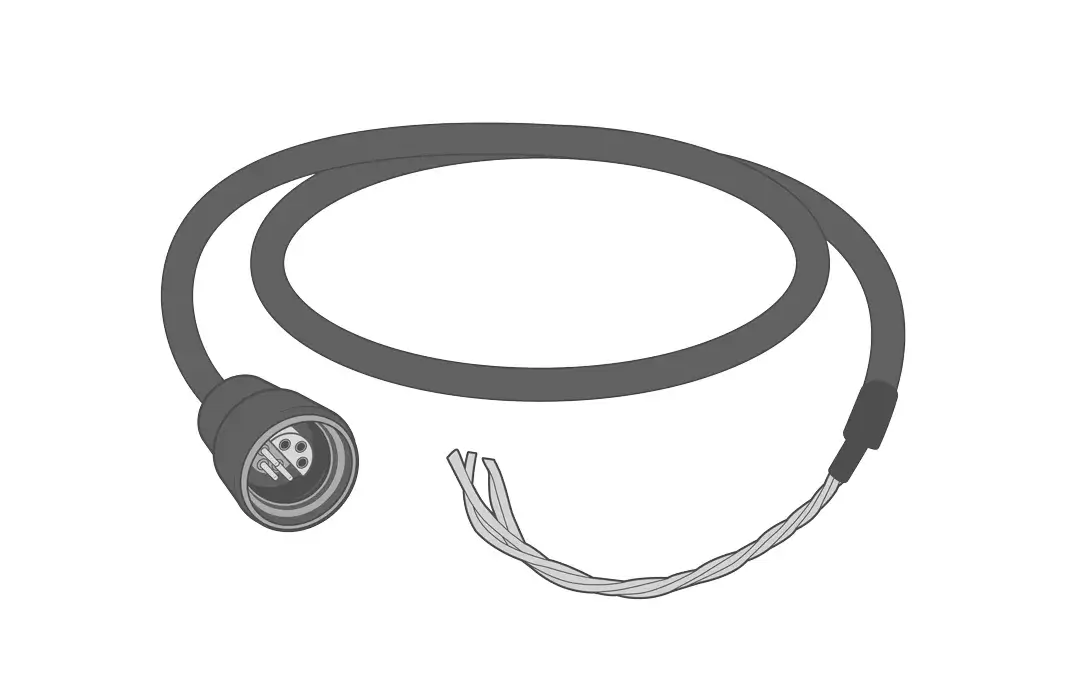

The UW6 receptacle to flying lead cable (UW6-FLxR) connects NexSens power accessories to external electronics with 12VDC power requirements.
Wiring

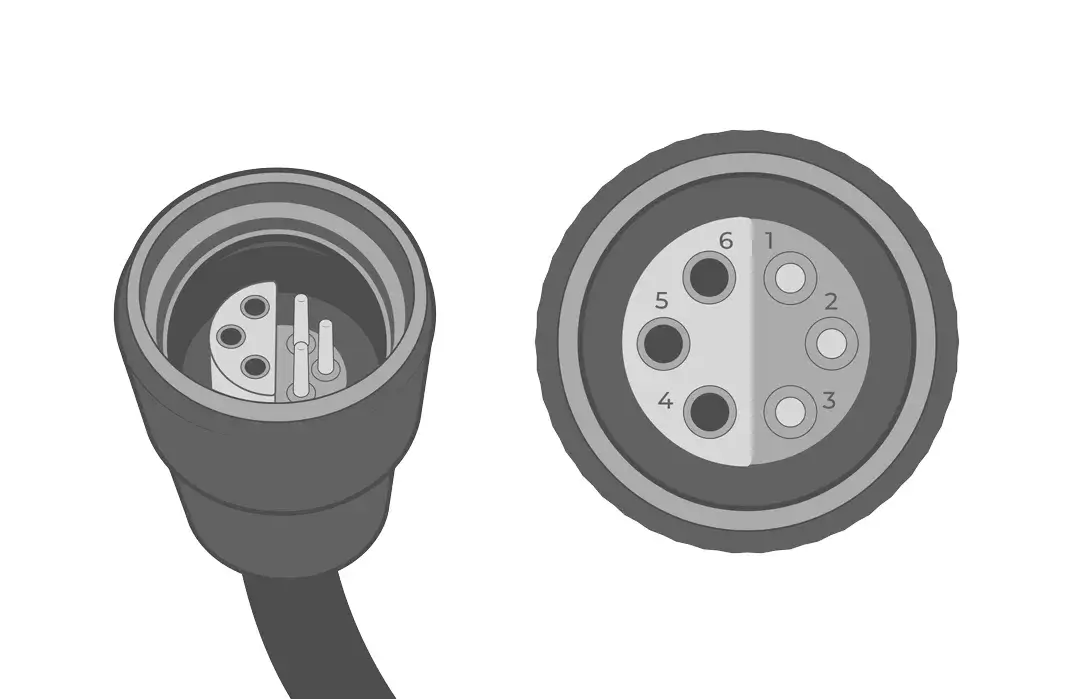

| UW Receptacle Pin | Wire Color | SensorBUS Signal* |
| 6 | Red | Power |
| 5 | Yellow | – |
| 4 | Balck | Ground |
| 3 | White | – |
| 2 | Blue | RS-485 B |
| 1 | Green | RS-485 A |
*When connected to NexSens products.
