VegaPuls C-Series Radar Water Level Sensor X-Series Integration Guide


The VegaPuls C-Series Radar Water Level Sensor measures water level using non-contact radar technology. It easily integrates with NexSens X-Series data loggers using the SDI-12 sensor interface.

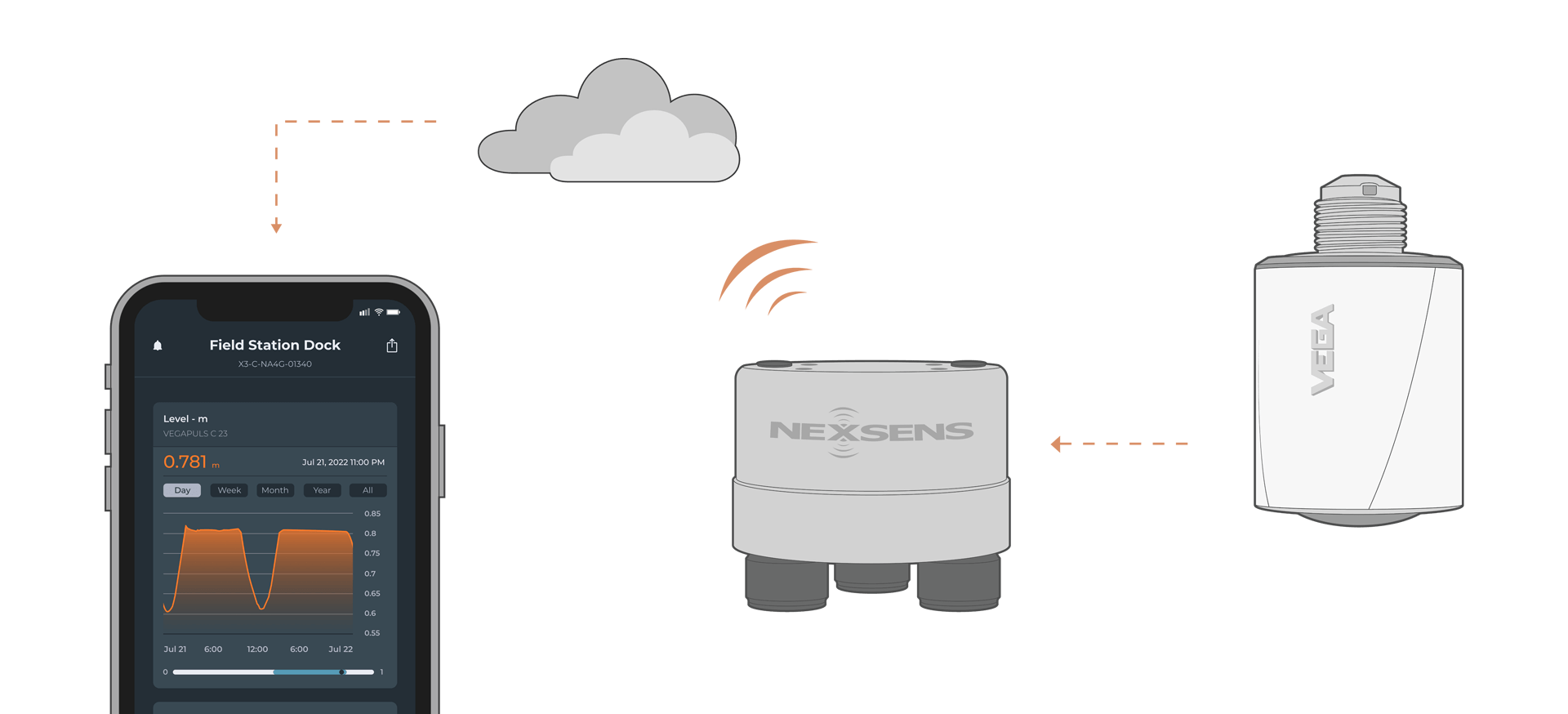

An illustration of a VEGA VEGAPULS C 23 Radar Water Level Sensor connected to a NexSens X3 Data Logger transmitting data to the cloud, which is shown on the WQData LIVE mobile app (depicted on a phone).

Sensor Setup

Before the sensor can be deployed, it must first be set up through the VEGA Tools app. Follow the manufacturer’s guidelines for sensor setup.



Connecting with X-Series Loggers

Next, the sensor will need to be set up for the X-Series logger using CONNECT software. If you have not yet done so, set up the project in WQData LIVE.

  1. Connect the sensor using the supplied cable to one of the open sensor ports on the logger and note the port number.
  2. Plug the X3 into the USB port of the computer and power it on with the AC power cable.
  3. Open CONNECT and select the SENSOR tab.
    Open CONNECT and select the SENSOR tab.
  4. Click Add and select VEGA from the Manufacturer drop-down. Then select the appropriate model.
  5. Adjust the SDI-12 address if needed and select the port number.
  6. Select either Continuous or Switch in the Power drop-down.
    1. Switch is recommended.

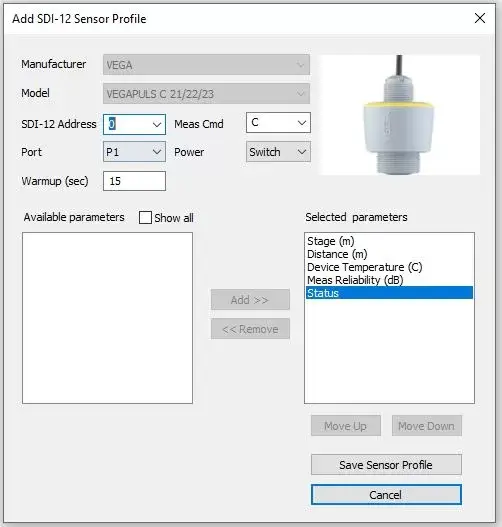

      VegaPuls C 23 Radar Water Level sensor profile in NexSens CONNECT Software.
  7. Select Save Sensor Profile.
  8. Complete the setup for all other sensors, and then click Save.
  9. Name the Sensor Profile List and select Ok.
    Save Sensor Profile List.
  10. Complete system setup by clicking Deploy.
    CONNECT interface with a VegaPuls C-Series Radar Water Level Sensor added.
  11. Confirm that data is being transferred to WQData LIVE at the next interval (default is 10 minutes).
