Olpas OTE-SEDA X-Series Integration Guide

The Olpas OTE-SEDA sensor measures suspended sediment concentration. It easily integrates with NexSens X-Series data loggers using the RS485 Modbus RTU sensor interface.



Sensor Setup

Follow the manufacturer’s guidelines for sensor setup.



Connecting with X-Series Loggers

Next, the sensor will need to be set up for the X-Series logger using CONNECT software. If you have not yet done so, set up the project in WQData LIVE.

1. Connect the sensor using the supplied cable to one of the open sensor ports on the logger and note the port number.
2. Plug the X3 into the USB port of the computer and power it on with the AC power cable.
3. Open CONNECT and select the SENSOR tab.

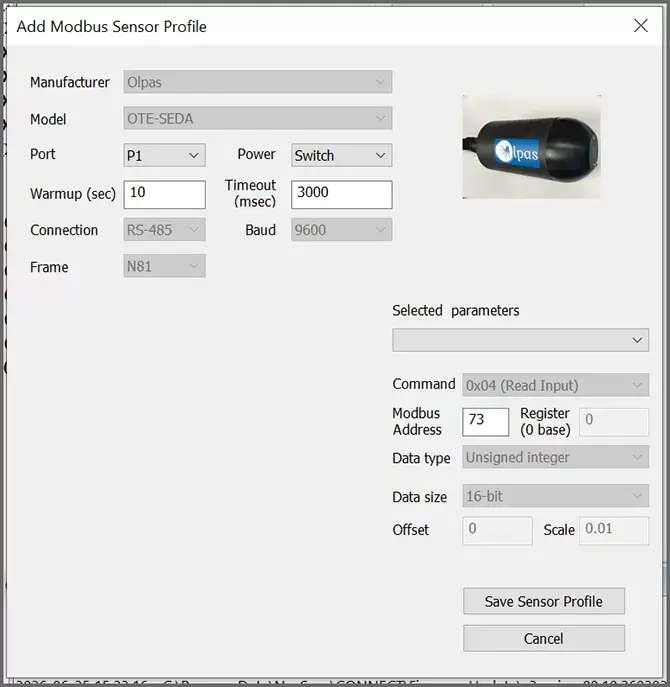

4. Click Add and select Olpas from the Manufacturer drop-down. Then select the appropriate model.
5. Select the port number.
6. Choose either Continuous or Switch in the Power drop-down.
   1. Switch is recommended.
7. Add or remove sensor parameters as desired.

8. Select Save Sensor Profile.
9. Complete the setup for all other sensors, and then click Save.
10. Name the Sensor Profile List and select Ok.

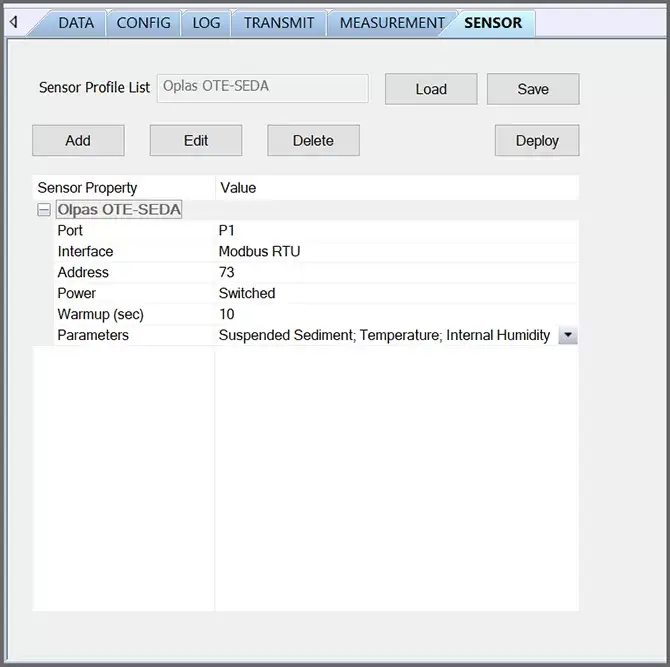

11. Complete system setup by clicking Deploy.

12. Confirm that data is being transferred to WQData LIVE at the next interval (default is 10 minutes).
