CB-450 Data Buoy
The CB-450 data buoy is ideally suited for dredge turbidity monitoring, temperature profiling, dissolved oxygen monitoring, limnology research, and weather monitoring on inland lakes.
The CB-450 is light enough to be deployed from most small boats, yet it offers adequate power and charging for rigorous instrument sampling and data transmission.
Three integrated 15-watt solar panels are angled and evenly spaced around the buoy to capture sunlight from any direction and provide adequate battery charging.

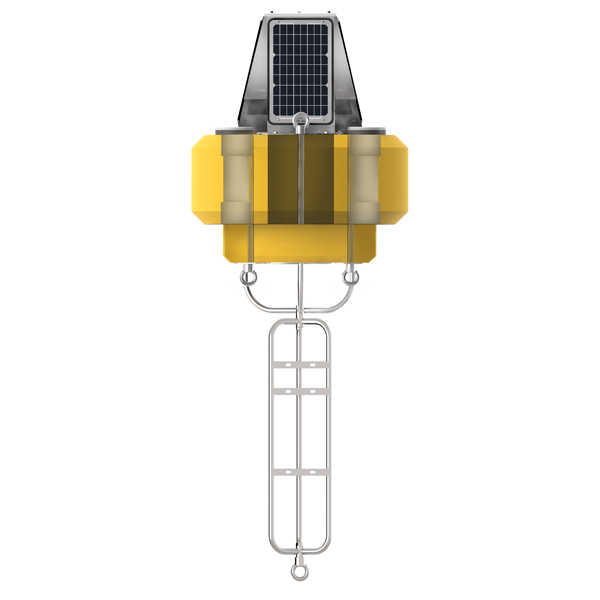

A 10-inch diameter by 19.5-inch tall data well provides a watertight housing for batteries, data loggers, sensors, and other hardware.

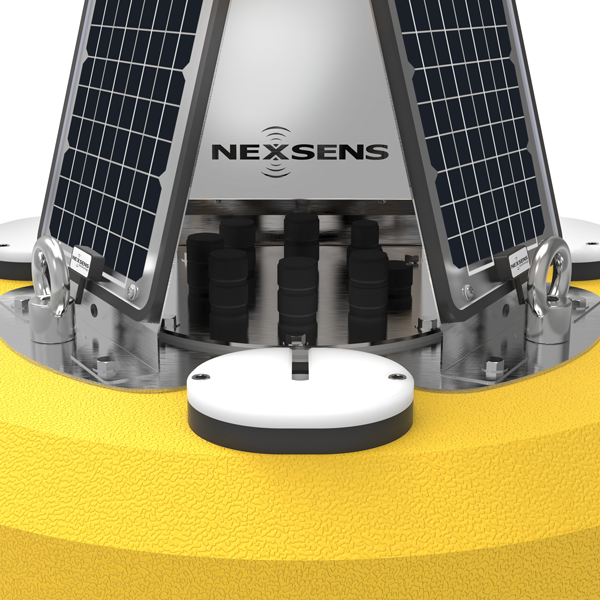

The data well lid provides pass-through connections for sensors, power, venting, and more. When integrated with the optional NexSens X2-CB data logger, the system is truly plug-and-play.
Three 4-inch pass-through ports allow for sensors to be mounted underwater while securely routing the cable. Instrument deployment pipes and custom sensor mounts attach to 4-inch NPT bottom threads.

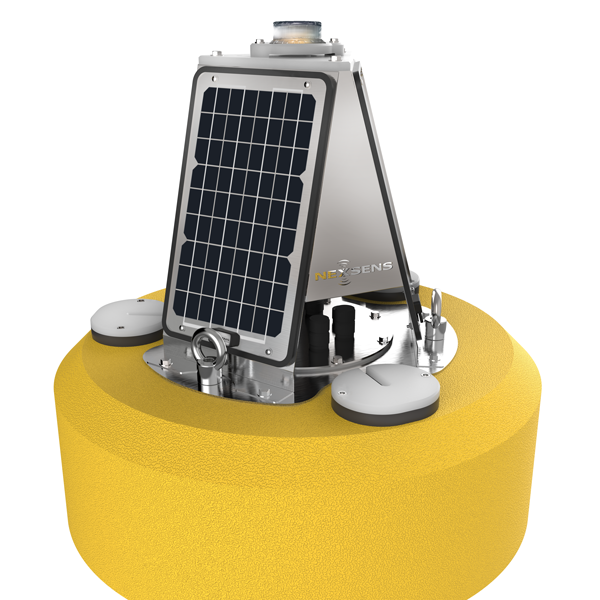

The optional solar marine light has a one to three nautical mile range and securely mounts to the buoy top plate for maximum visibility.
The X2-CB data logger replaces the standard pass-through data well lid for turnkey systems. Alternatively, 3rd party data loggers can be integrated by the user inside the data well.
Communication options using the X2-CB data logger include Wi-Fi, radio-to-shore, cellular, and Iridium satellite.
Built to Last
Constructed of cross-linked polyethylene foam with a heavy polymer skin and an indestructible stainless steel frame, the CB-450 is designed for years of service.
- Hull Outer Diameter: 34.0” (86.4cm)
- Hull Height: 20.0” (50.8cm)
- Data Well Inner Diameter: 10.3” (26.2cm)
- Data Well Height: 19.5" (49.5cm)
- Pass-Through Hole Diameter: 4.0" (10.2cm)
- Tower Height: 20.0” (50.80cm)
- Solar Panels: 3x 15-watts
- Weight: 130 lb (59kg)
- Net Buoyancy: 450 lb (204kg)
- Hull Material: Cross-linked polyethylene foam with polyurea coating & stainless steel deck
- Hardware Material: 316 stainless steel
- Mooring Attachments: 3x 3/4” eyenuts
Freezing and periodic maintenance are the two most common reasons to remove a buoy from the water. A large number of buoy deployments are seasonal, so customers will commonly remove the buoy in the fall and redeploy in the spring. For year-round buoy deployments, NexSens recommends pulling the buoy at least once for cleaning and maintenance inspection.
The potential for large storms and river debris flows are also good reasons to pull a buoy in order to prevent any ensuing damage. NexSens recommends integrating a GPS in situations where debris loads or other circumstances have the potential to move the buoy, like in a river or coastal setting.
